FEATURES

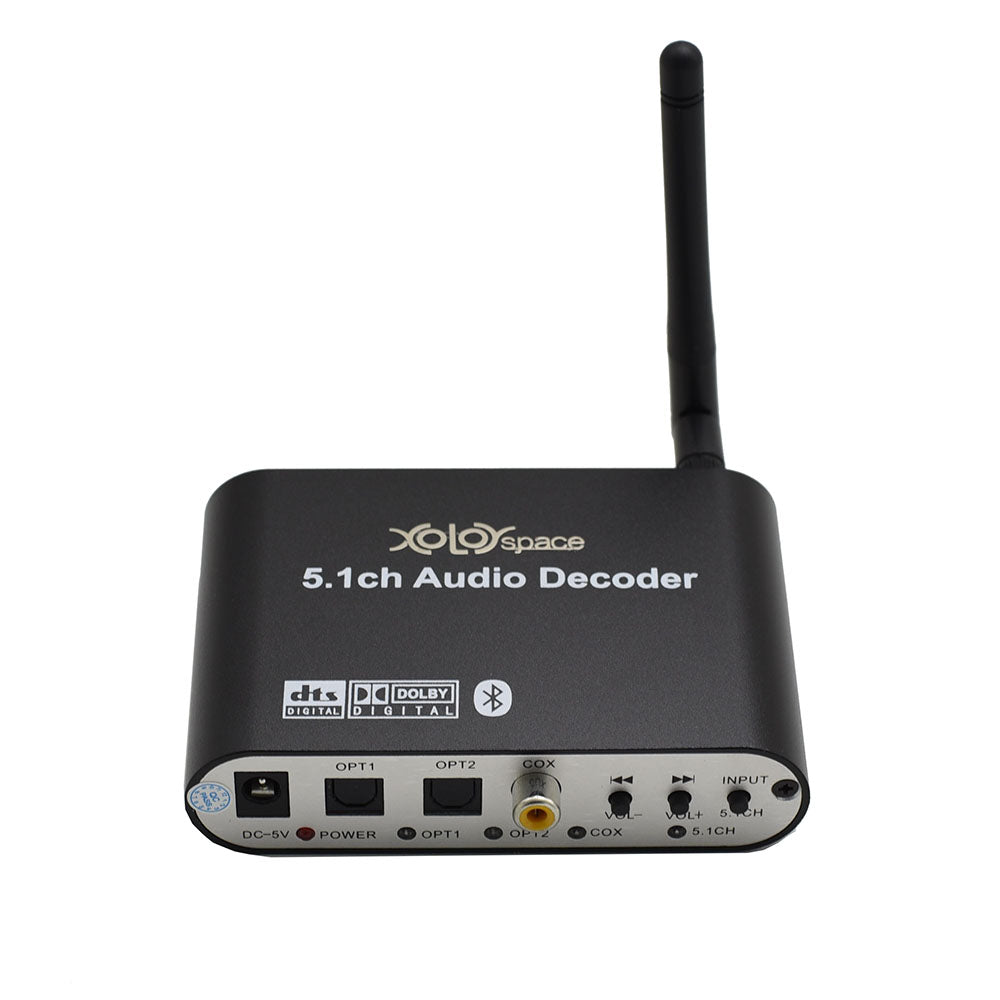

- With two Optical inputs, one Coaxial input, one Bluetooth 5.0 input, You can switch different signal sources randomly by Button.
- Supports one 5.1ch analog audio output (3.5mm connector)
- Supports 5.1ch/2.0ch output mode selection, FL/FR active when 2.0ch output mode.
- Not supports VOLUME adjustment
- Supports hardware decoding (5.1 channel separation) and software decoding (2.0ch to 5.1ch)
- Input source selection memory after power off
- Use DC-5V/1A external power adapter power supply,
SPECIFICATIONS
- Supported format: DTS, AC3, WAV, FLAC, APE, HDCD, AAC, WMV, Mp3, M4a etc.
- DSP sample frequency range: 24~192 KHz
- DSP Bit rate range: 16~24 Bit
- Digital input level: 0.1~2Volts p-p
- Analog output level (1kHz@0dB): ≥1.5V RMS
- SNR @ 0dB(CCIR/ARM): ≥90dB
- Frequency response: 20Hz~20KHz
- Max working current: 400mA
- Power adapter format Input: AC100V~240V 50HZ/60Hz, DC-5V/1A
- Operating Temperature range: -10 to +60℃
- Storage Temperature range: -20 to +60℃
- Operating Humidity range: 10 to 90%RH (No Condensation)
- Storage Humidity range: 5 to 95%RH (No Condensation)
- Product Dimension (L x W x H): 108x88x27 (mm)
- Product Weight: 150g
