INTRODUCTION:

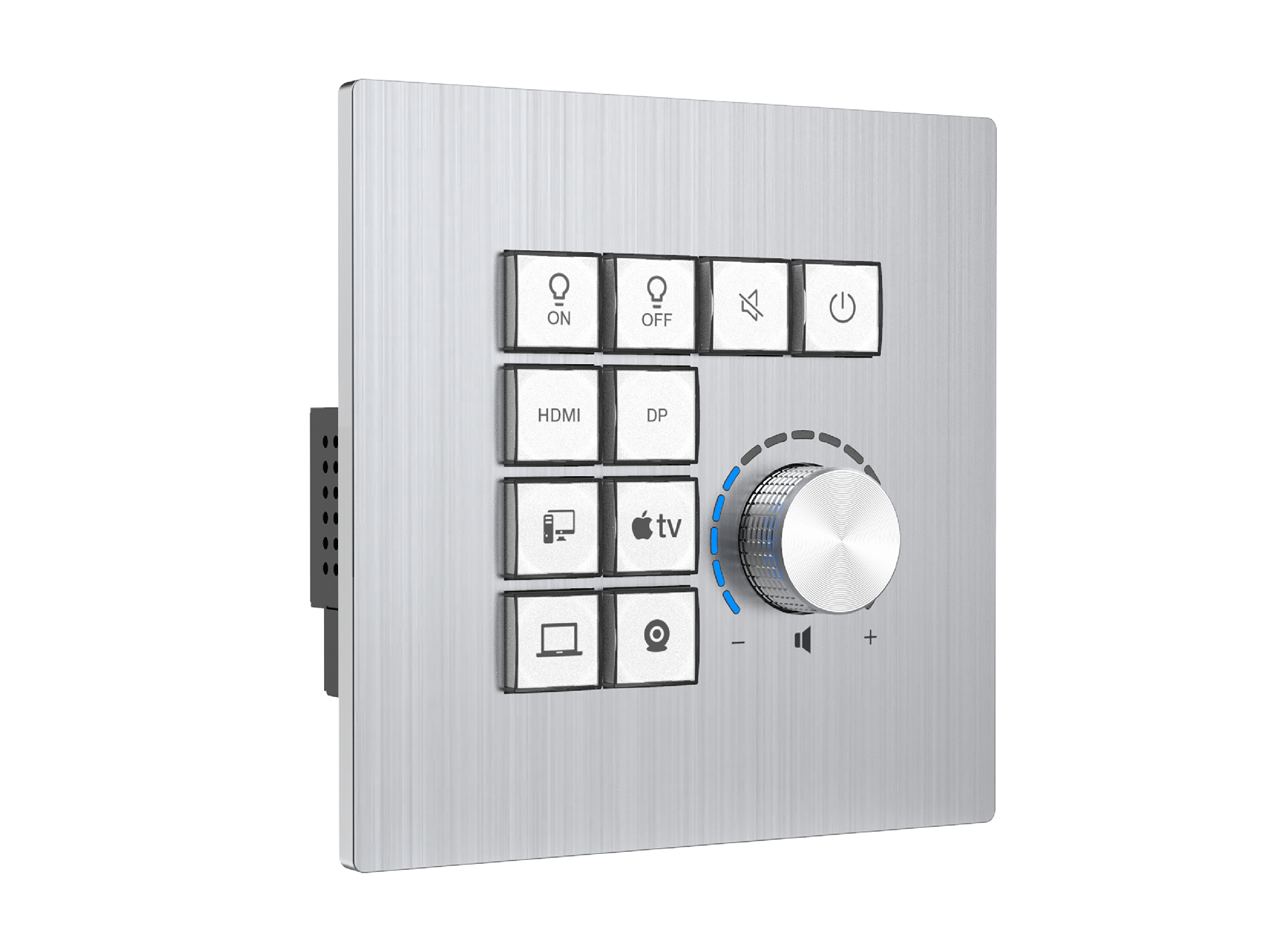

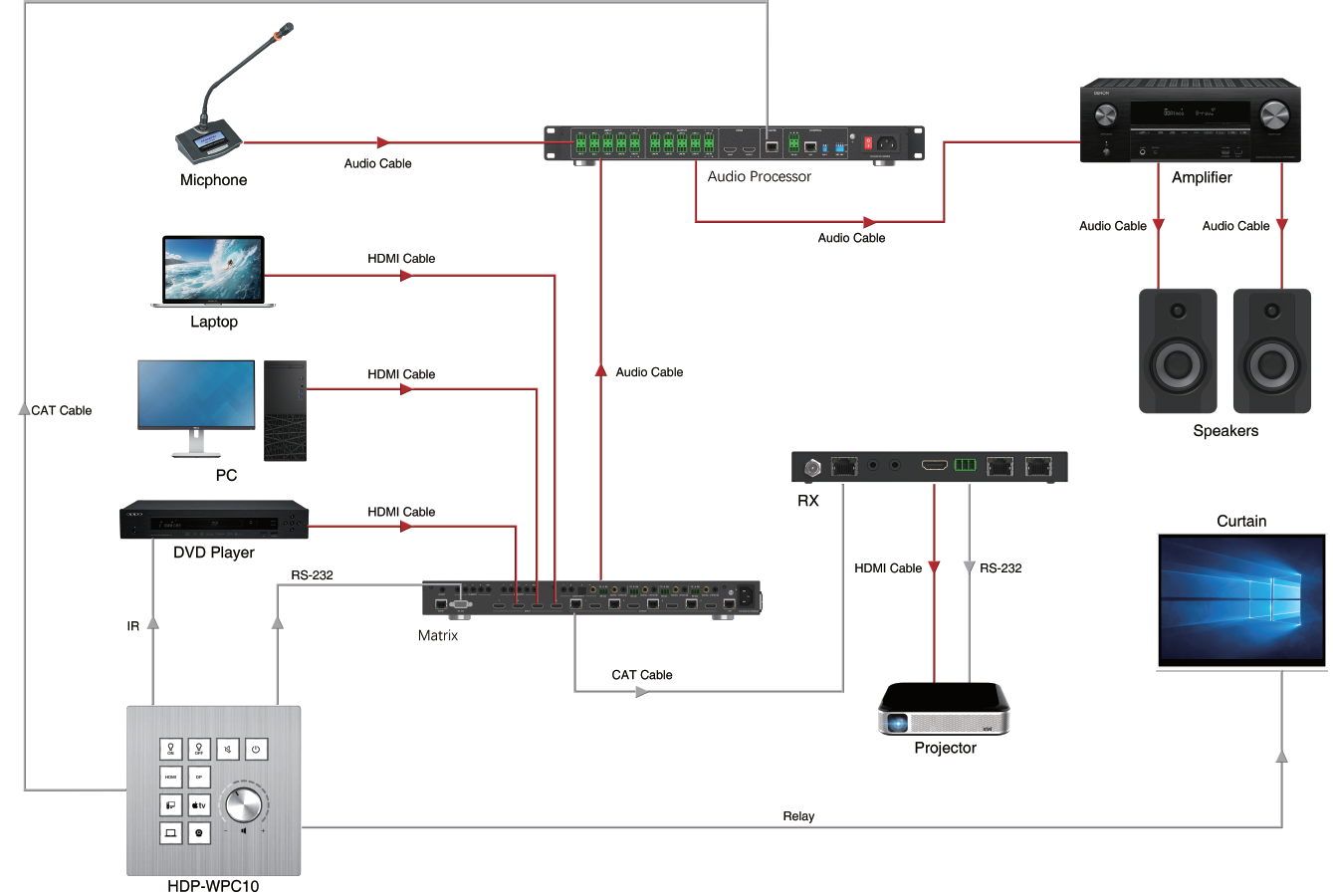

With a programmable interactive user interface over configuration protocols, the integrated system provides intelligent networking service. The control panel features 10 programmable buttons, 1 programmable knob, 2 two-way serial ports, 1 IR output port, 2 Relay ports, 1 digital I/O port and 1 Ethernet port. It is used in a diverse range of installations and applications across industries including multi-media conference rooms, multi-functional halls, training centers, show room, broadcasting studios and industrial automation.
FEATURES:
- With 2 two-way serial ports to connect matrixes, projectors or other A/V devices
- With 1 IR output/one-way serial port to connect DVD, TV sets, or other home appliances
- With 2 relay ports to control lights, doors or curtains
- With 1 digital input port to receive sensor signals
- With 10 programmable buttons for custom control logic
- With 1 programmable knob (with light indicator), volume can be controlled through the knob
- Capable of connecting with Ethernet-control devices for Ethernet monitoring and control
- Provide a high-performance Web server, supporting on-line firmware upgrade
- Compliant with standard network communication protocols
- Password protection against unauthorized accesses
- Built-in sync clocks
- Support factory reset
- CPU ARM Cortex-A53 1.8GHz
- Operation System Android 9
- RAM 2GB DDR4 RAM
- Flash Memory 8GB EMMC Flash

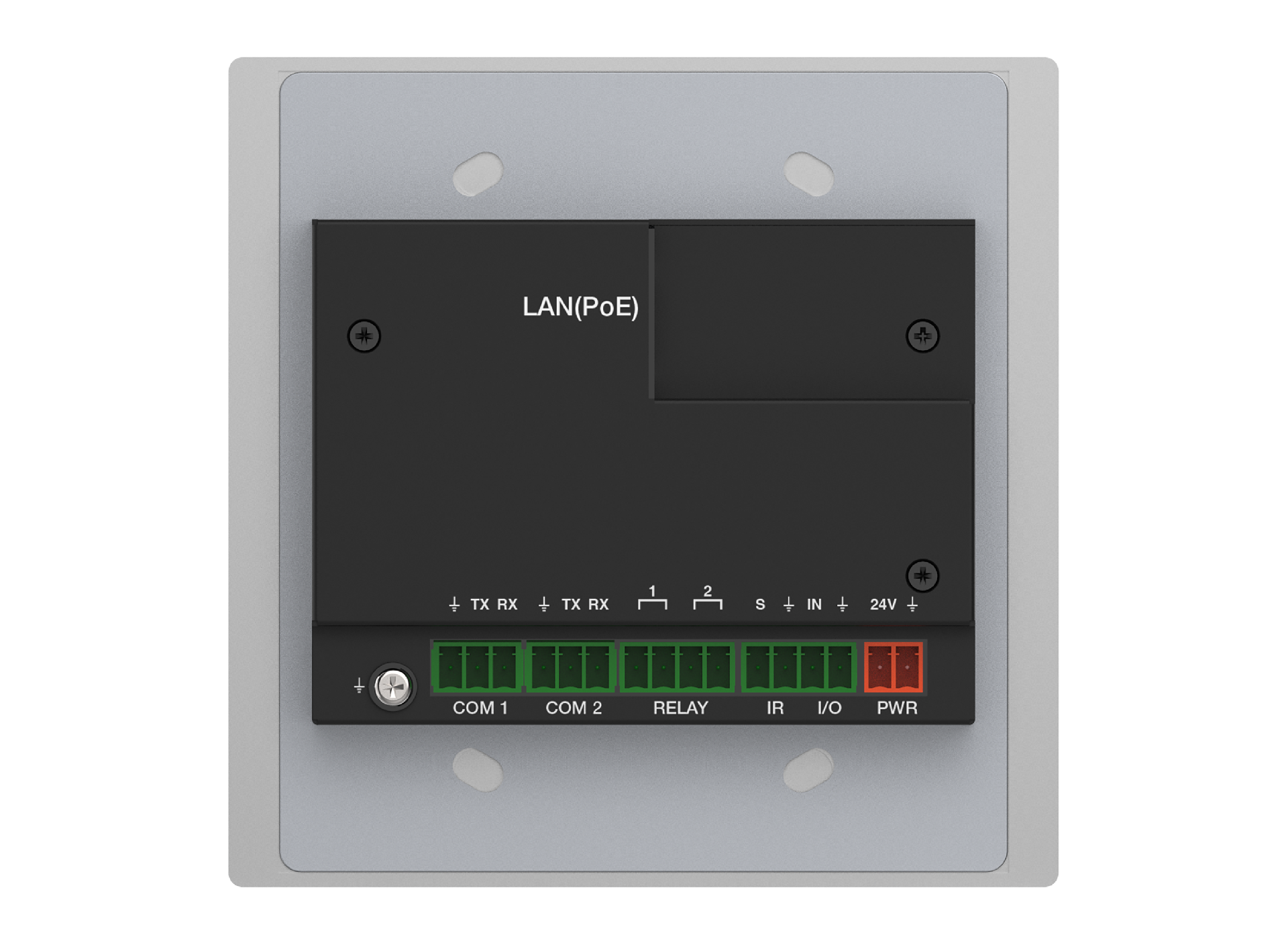

- Connections
COM1/2 2x 3-pin Phoenix Connectors, for two-way RS-232 serial data communication
IR 1x 2-pin Phoenix Connectors, for IR transmitting or one-way RS-232 serial data communication
RELAY 2x 2-pin Phoenix Connectors, low-voltage relays, isolated, normally open, switching up to 30VDC, 1A / 125VAC, 0.3A
I/O 1x 2-pin Phoenix Connectors, for digital signal inputting
LAN/POE
1 standard 10M/100M/1000M Ethernet RJ45 interface,
- supporting POE function
- PWR 1x2-pin Phoenix Connectors, for power supply

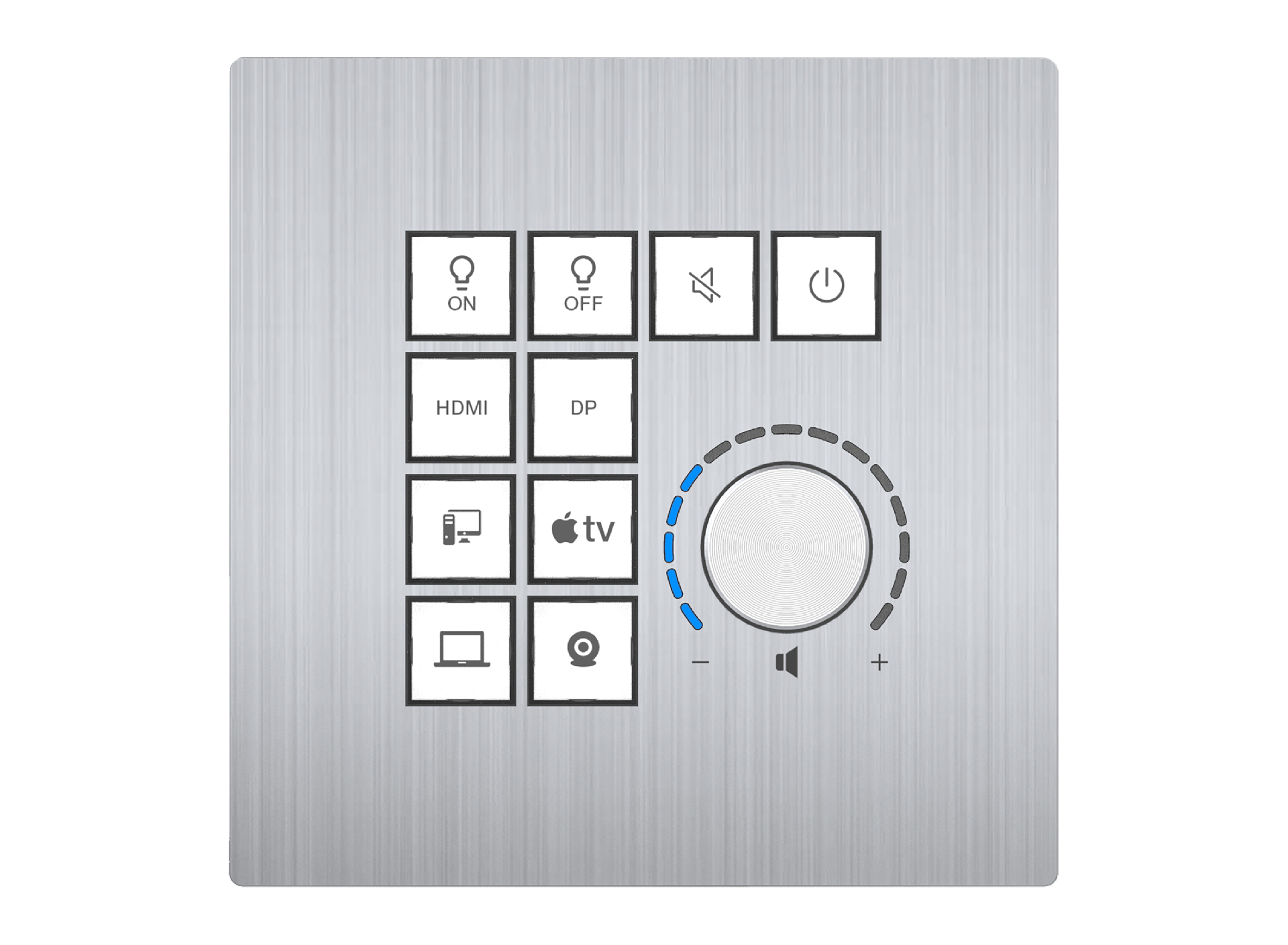

- Buttons 10x programmable buttons
- Knob 1x programmable knob
- Dimensions 116mm (W)x54mm (D)x116mm (H)
