Introduction
HDMI 200M Extender over IP is based on TCP/IP standard. It transmits your HD display with the high resolution up to 200 meters away from your DVD or computer source by using one CAT6 cable. At the same time, it’s convenient to transmit HDMI audio and video source by point-to-point mode, point-to-multipoint and cascade connection mode.
Features:
- Compliant with HDMI 2.0 and HDCP 2.2;
- Supports resolution up to 4K 60HZ pass through;
- Applies H.265 decode;
- Transmission distance of single line is up to 200 meters;

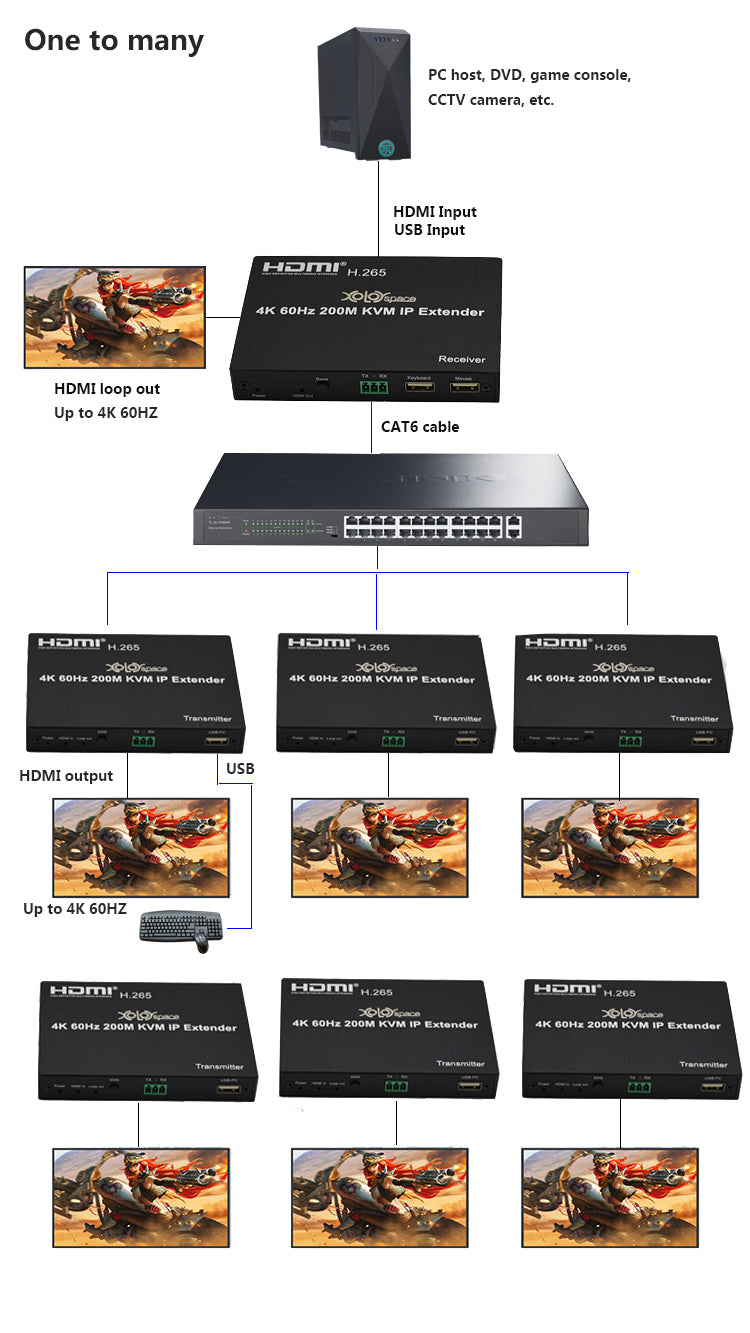

- Support point-to-point mode, point-to-multipoint mode (bypass a gigabit switch), and cascade connection mode;
- Supportup to 255pcs RX theoretically, not rely on IP to distribute address;
- Support RS232;
- 802.3 Ethernet standard;
- TX fixed IP address: 192.168.1.168, RX fixed IP address: 192.168.1.160;
- Support USB mouse and keyboard extension;
- Transmission bandwidth is 20M, and the transmission delay about 60ms;
- The TX supports EDID button to switch resolution of 4K@60Hz, 4K@30Hz, 1080P@60Hz;
- Resolutions: 4K@60Hz/4K@30Hz/1080P
- Support video format: RGB and 444, YUV422, 8bit
- Support audio format: PCM2.0, 32kHz,44.1kHz and 48kHz
- Output cable length: UTP CAT6 standard cable up to 200 meters, UTP CAT5e 24AGW standard cable up to 150 meters
- Power adapter format : Input AC (50HZ, 60HZ) 100V-240V; output: DC12V/1A
- The max working current: TX 650m, RX 450m
- Size(L-W-H): 122x84x19mm
- Weight: 193g x 2
