Introduction:

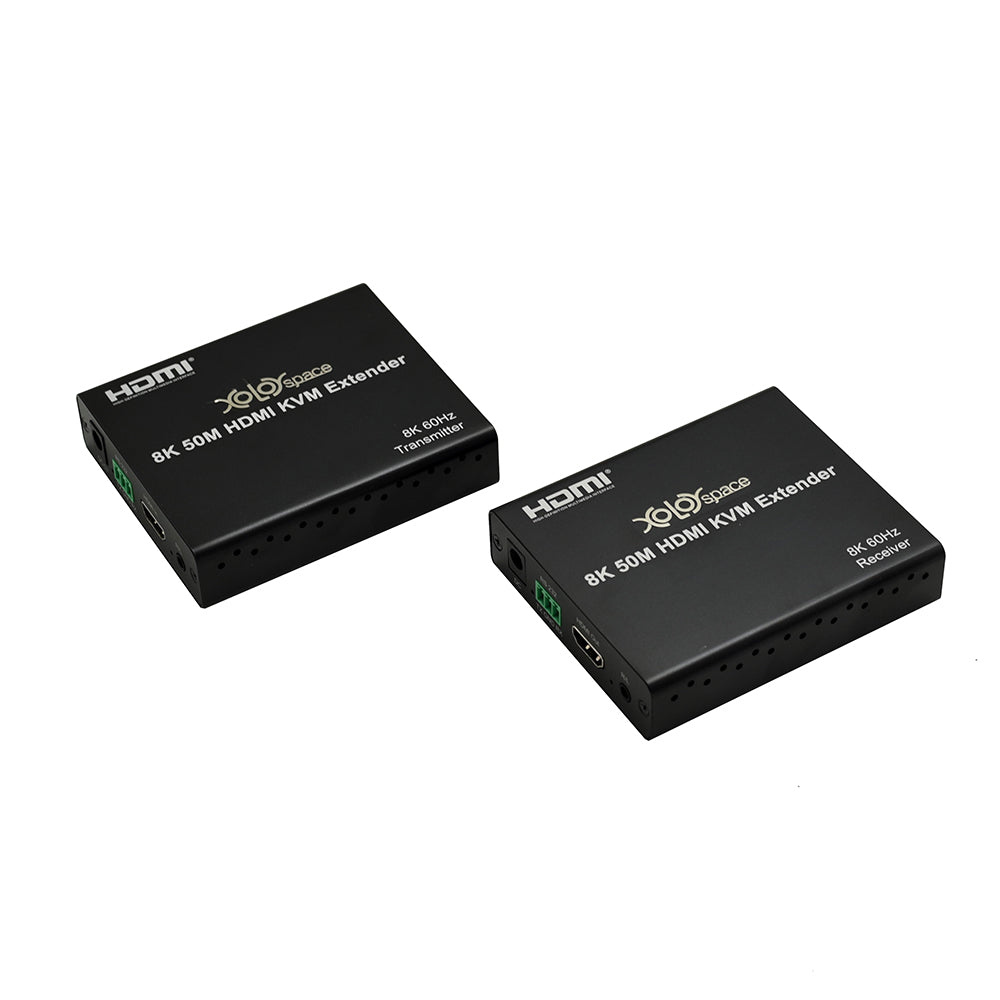

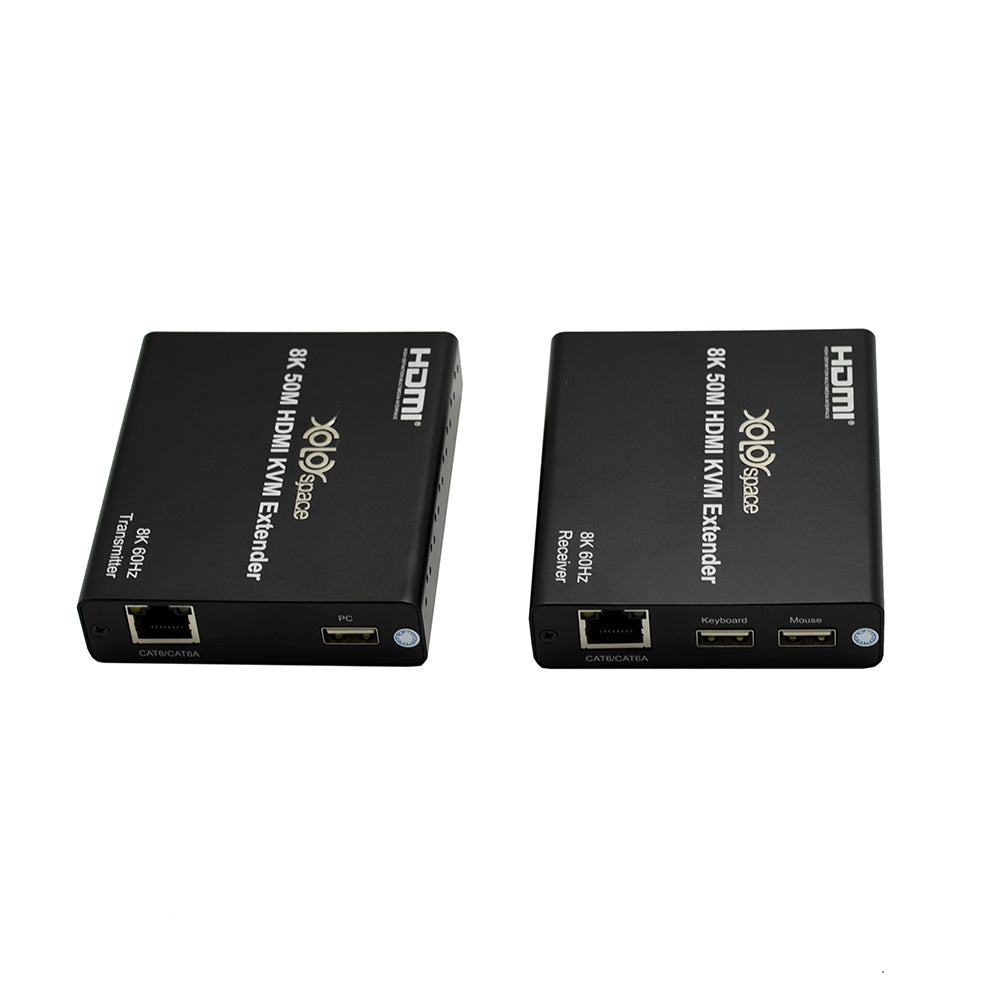

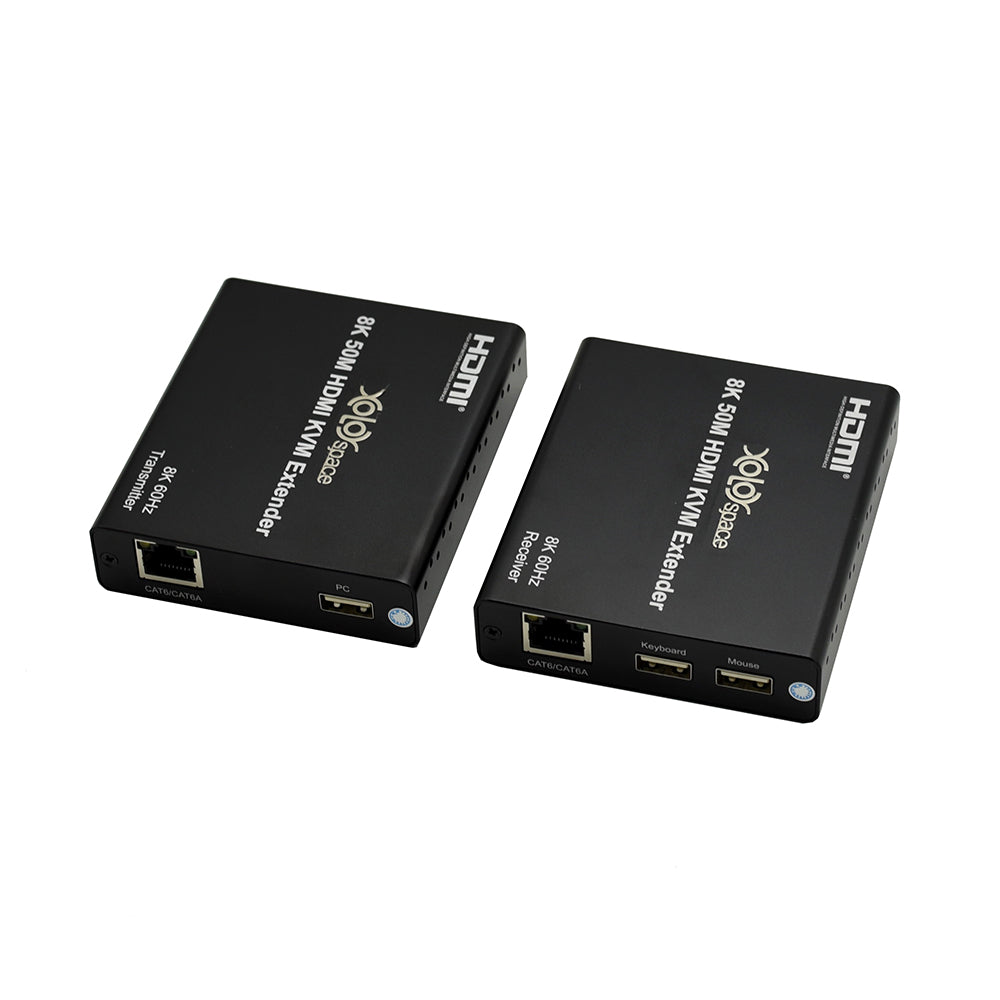

The Extender uses single cat6a or cat6 cables instead of HDMI cable to transmit high definition signal up to 50 meters, support 8K60Hz (YUV420)/4K144Hz/4K120Hz input and output. This extender achieves long-distance signal transmission using low-cost cabling.
Features:
- Support input and output resolution 7680*4320/60Hz YUV420/12bit, 8K@30Hz, 4K144Hz/4K120Hz/60Hz/30Hz
- 4K@144Hz YUV422 10bit (FRL), 4K@120Hz, 4K@60Hz, 4K@30Hz, 48Gbps bandwidth.
- Compatible with PS5, Xbox, VRR/4K@120Hz.
- Support HDMI Audio Passthrough, Dolby, DTS and 7.1 channel.
- Support HDR, ALL.
- Compliant with HDCP 2.2/2.3 and HDCP 1.4.
- Support (VRR) FreeSync, G-Sync.
- 7680*4320/60Hz YUV420/12bit Length of Network cable CAT6A UTP 23AWG up to 50M, CAT6 UTP 23AWG up to 40M.
- Support USB mouse, keyboard extension.
- Support RS232 Serial Port Pass-through & Extension.
- Supports audio format: Dolby Atmos/DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD/DTS:X
- Max baud rate 48Gbps
- TX Max working current: 750mA
- RX Max working current: 700mA
- Power adapter format : Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
- Dimension (L x W x H): 94x81x22 (mm)*2
- TX Weight: 135g
- RX Weight: 136g
