Introduction:

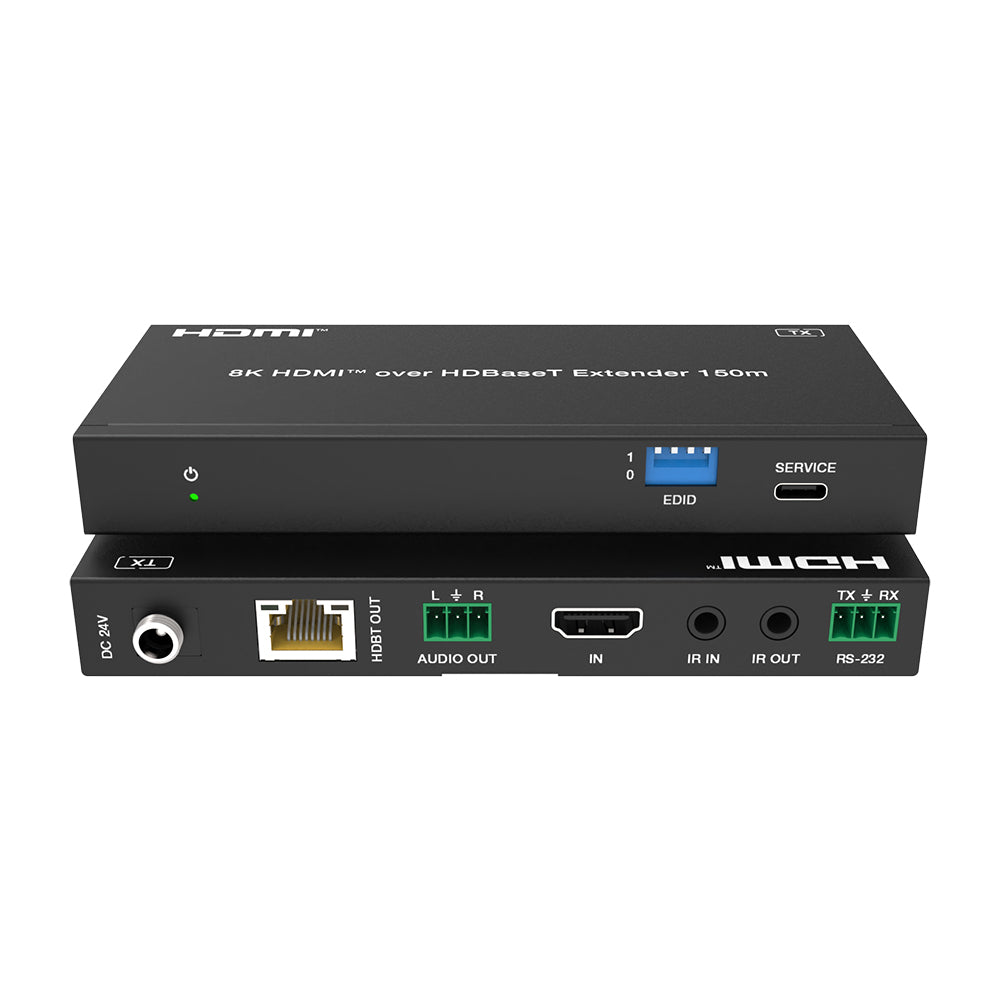

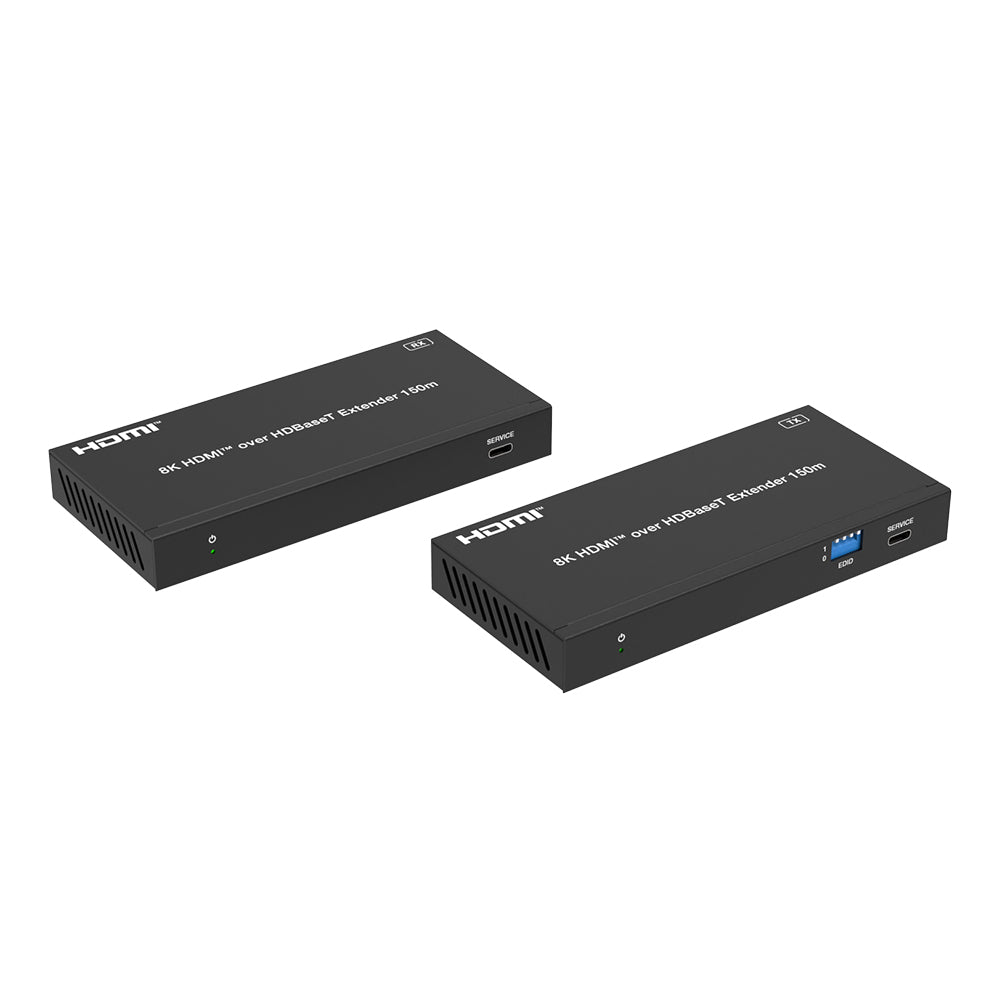

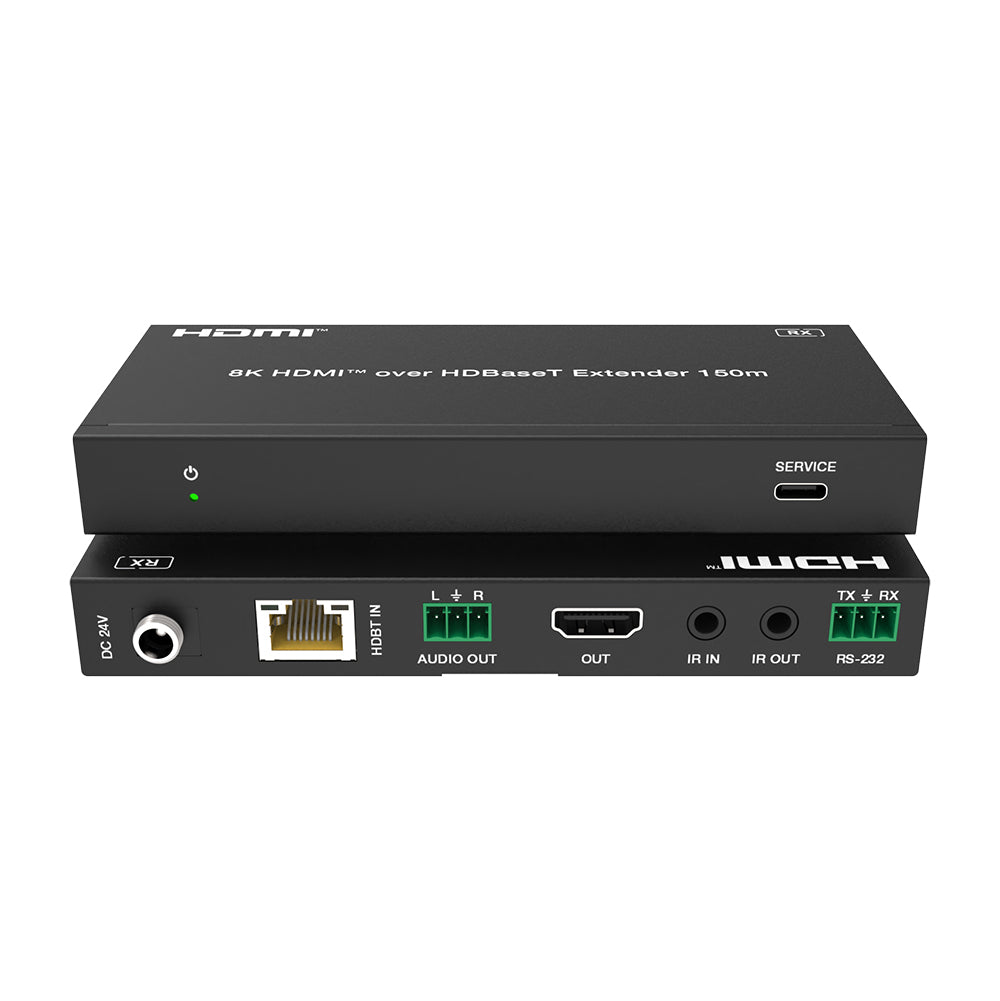

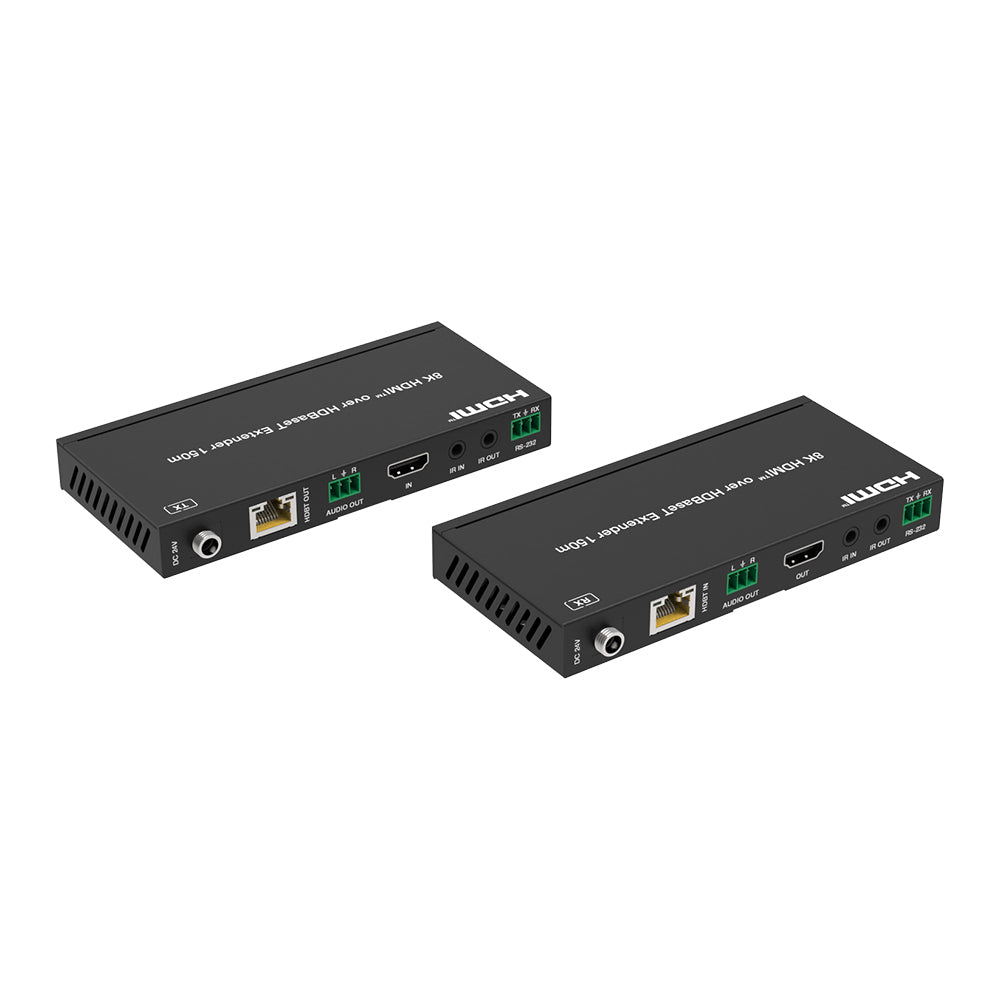

This is a high-performance, long-reach HDBaseT extender for HDMI, RS-232, and IR signals over twisted pair device. The transmitter converts all input signal into HDBaseT signal for transmitting. And the receiver receives the HDBaseT signal and converts it back into the original signals. The transmission distance is up to 90m/295ft for 8K@30Hz (4:4:4), 4K@120Hz (4:4:4), 120m/394ft for 4K@60Hz (4:4:4) resolution, and 150m/492ft for 1080p resolution via CAT copper cable. It provides exceptional quality, flexible control, advanced and user-friendly operation.
Specifications:
- HDMI Compliance HDMI 2.1; HDCP Compliance HDCP 2.3
- Video Bandwidth 40Gbps FRL and 18Gbps TMDS
- Video Resolution supports:
640x480p60Hz,800x600p60Hz，1024x768p60Hz，1280x1024p60Hz，1360x768p60Hz,1440x900p60Hz,1440x1050p60Hz，1680x1050p60Hz，1920x1200p60Hz，480i60Hz,480p60Hz,576i50Hz,576p50Hz,720p50Hz,720p60Hz,1080i50Hz,1080i60Hz,1920x1080p24/25/30/50/60/100/120Hz,3840x2160p24/25/30/50/60/100/120Hz,4096x2160p24/25/30/50/60/100/120Hz,5120x2160p24/25/30/50/60/100/120Hz,7680x4320p24/25/30Hz,4096x2160P60/59.94/50/30/25/24/23.976Hz,
3840x2160P60/50/30/25/24Hz,2560x2048P60Hz,2560x1600P60/75/85/60(RB),
2560x1440P60/60(RB),2560x1080P60/50/24/25/30Hz,2048x1280P60Hz,2048×1152P60Hz,1920x1440P60/75Hz, 1920x1200P50/60Hz, 1920x1080P120/100/60/50/24/25/30Hz,1920x1080i60/50/i30Hz,1856x1392P75/60Hz,1792x1344P75/60Hz,
1680x1050P50/60/24/25/30Hz，1680x720P24/25/30/50/60/100/120Hz,1600x1200P65/75/85/50/60/70/24/25/30Hz,1600x1024P60/24/25/30Hz,1600x900P60/24/25/30Hz, 1440x960P72/50/60(RB),1440x900P60/75/85Hz,1400x1050P60Hz，1400x788P60Hz，1366x768P60/24/25/30Hz，1360x768P60Hz,1280x1024P96/75/85/60Hz,1280x960P60/85Hz，1280x800P120/P85/75/60Hz,1280x768P120/75/85/60(RB)/60Hz,1280x720P60/50/24/25/30Hz,1152x870P75Hz,1152x864P75Hz，1024x768P85/75(RB)/75/70/60Hz,1024x576P60Hz，852×480P60Hz,848x480P60Hz,832x624P75Hz,800x600P120/85/75/72/60/56Hz,720x400P70/85Hz,720x576P200/100/50Hz,720x480P120/60Hz,640x480P75/85/67/72/60/59.94Hz,640x400P85Hz,640x350P85Hz,1920x2160P60Hz,5120x2160P100/75Hz,
5120x2160P60/59/30Hz,3440x1440P60Hz - Transmission Distance:
150m/492ft for 1080p; 120m/394ft for 4K@60Hz;
90m/295ft for 8K@30Hz over CAT6 cable - Color Depth 8/10/12-bit
- Color Space RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
- IR Level 5Vp-p
IR Frequency Wideband 20K-60KHz Up to 8K@30Hz (4:4:4) - HDR HDR, HDR10, HDR10+, Dolby Vision, HLG
- HDMI audio format: LPCM 2.0, LPCM 5.1, LPCM 7.1, (32K/44.1K/48K/88.2K/96K/
176.4K/192K) (16/20/24); Dolby Digital, Dolby Digital Plus, Dolby
TrueHD, Dolby Atmos; DTS Surround, 96/24, ES, DTS Express,
DTS-HD HRA, DTS HD Master, DTS:X - ESD Protection: IEC 61000-4-2:±8kV (Air-gap discharge) & ±4kV (Contact discharge)
- Dimensions: Transmitter/Receiver: 140mm (W) × 65mm (D) × 18mm (H)
- Transmitter/Receiver: 240g
- Power supply: DC 24V/1A; Support bi-directional POC function
