Introduction:

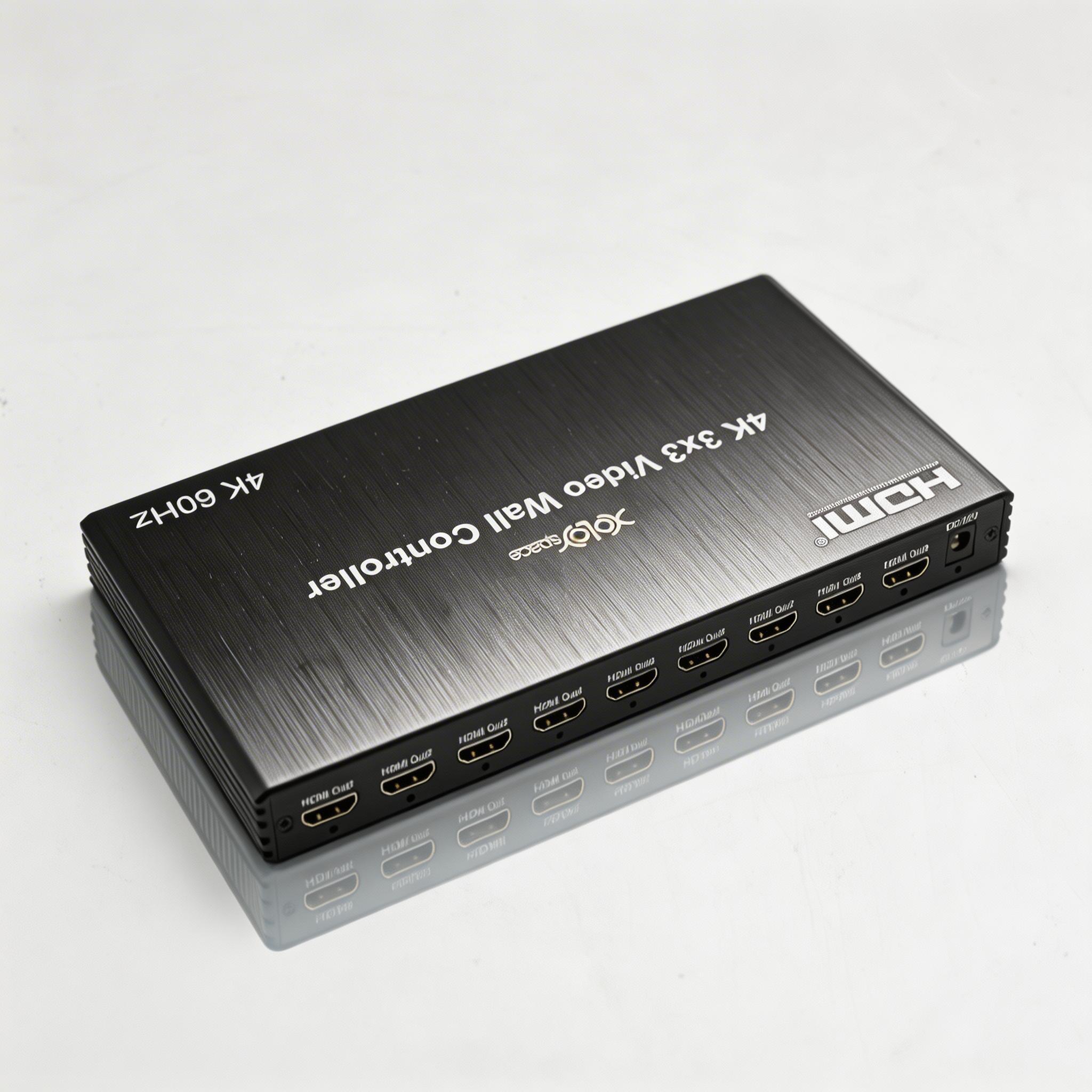

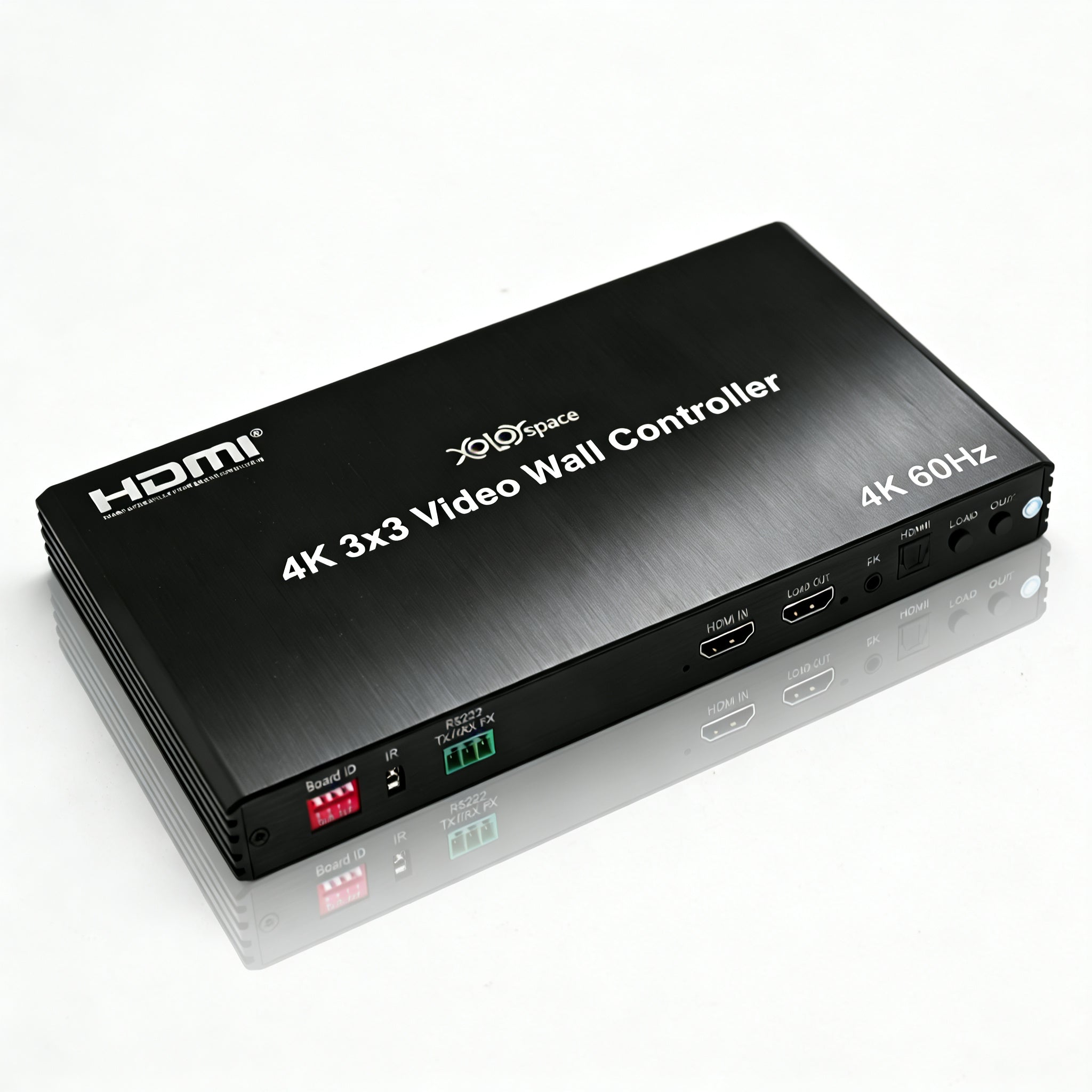

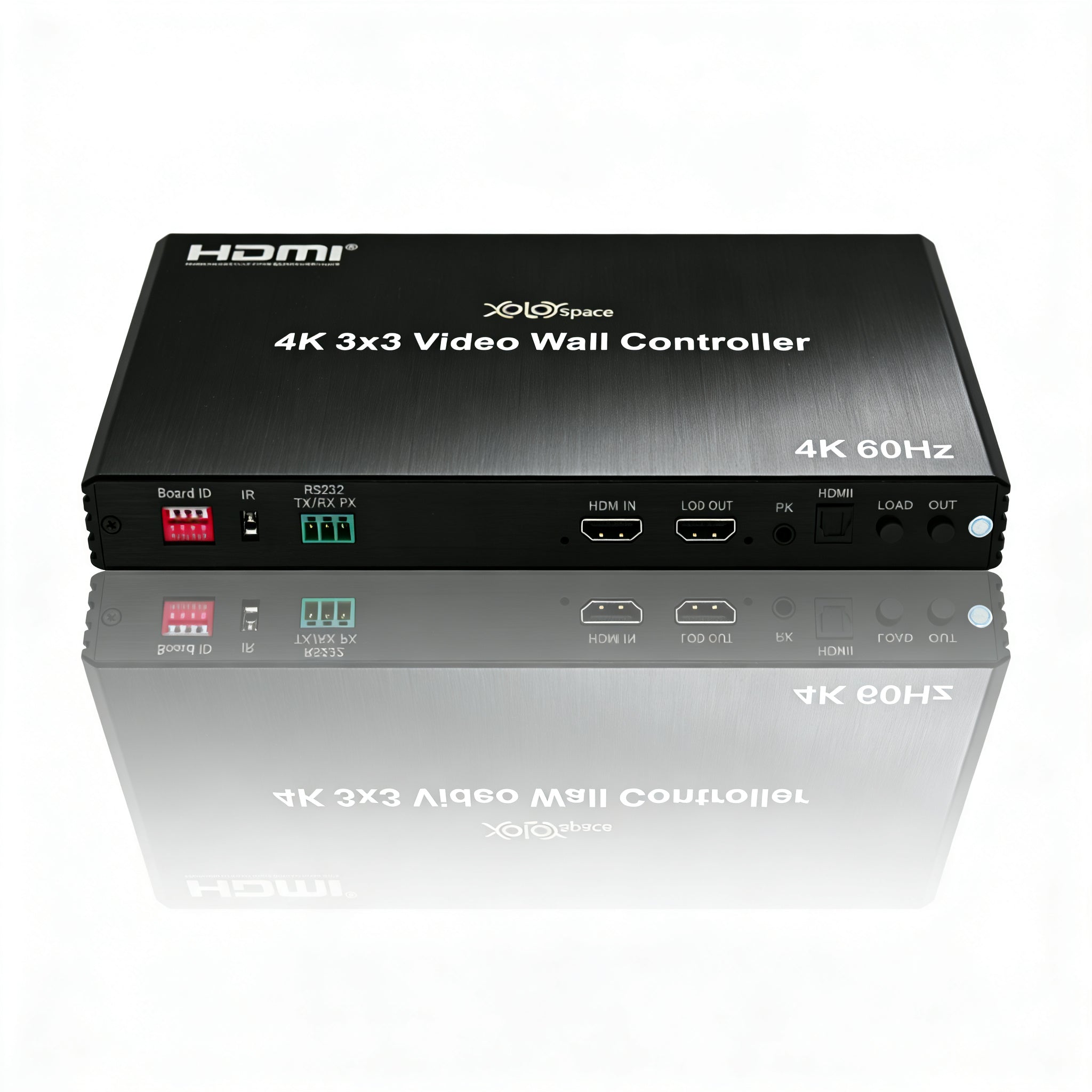

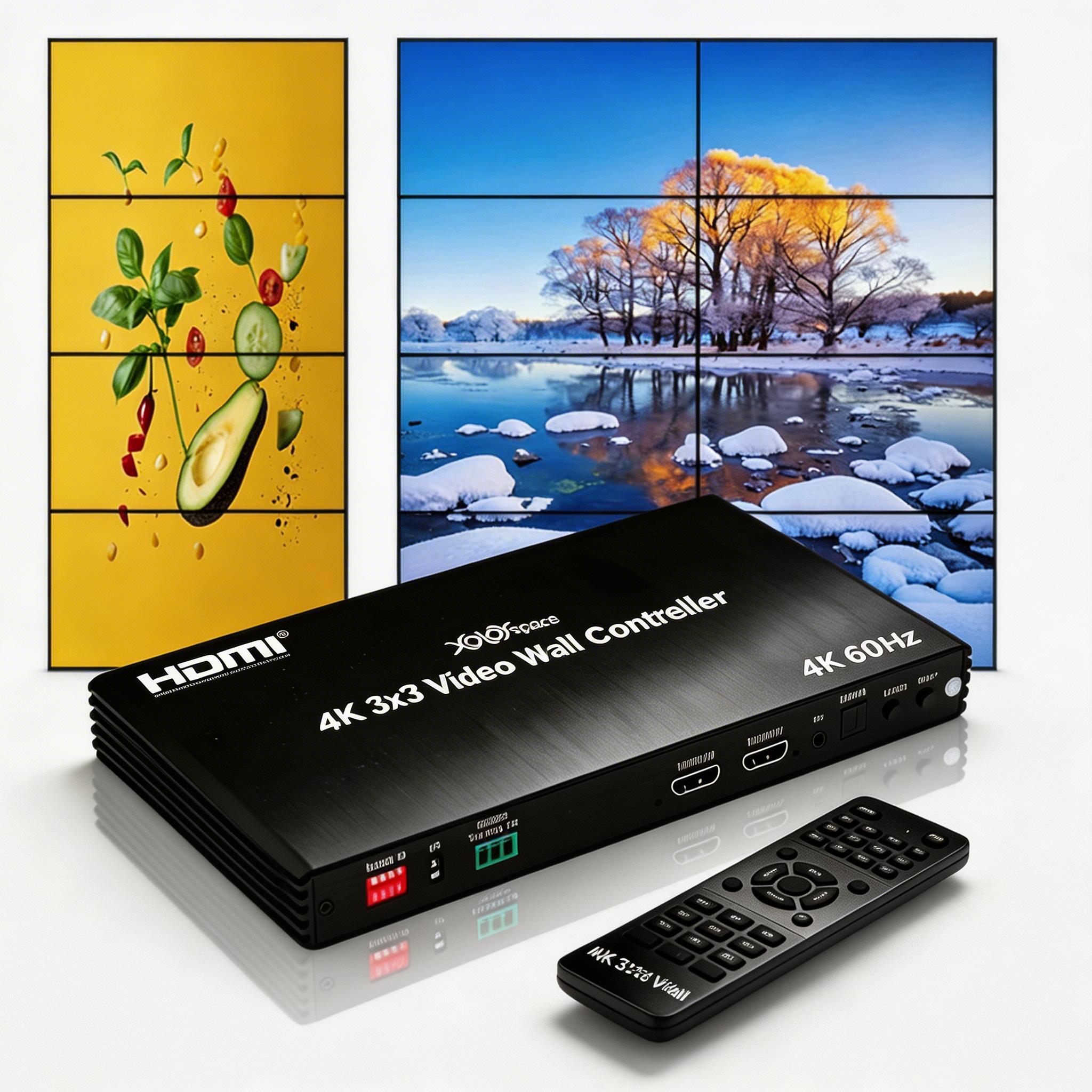

The 4K@60Hz 3x3 video wall controller , support 1-way HDMI input and 10-way HDMI outputs, the main function is to divide a complete HD image signal into 9 blocks and assign to 9 video display units (such as rear projection unit, LCD TV, etc.), Display a series of images in high definition with various splicing effects, perfectly compose multi-screen splicing. The controller also Supports multi-unit cascading with a maximum capacity of By splicing 27 display units. Primarily used for ultra-high-definition video surveillance, large-screen walls, commercial advertising displays, and exhibition showcases. Large screen and other industry applications.
Features:

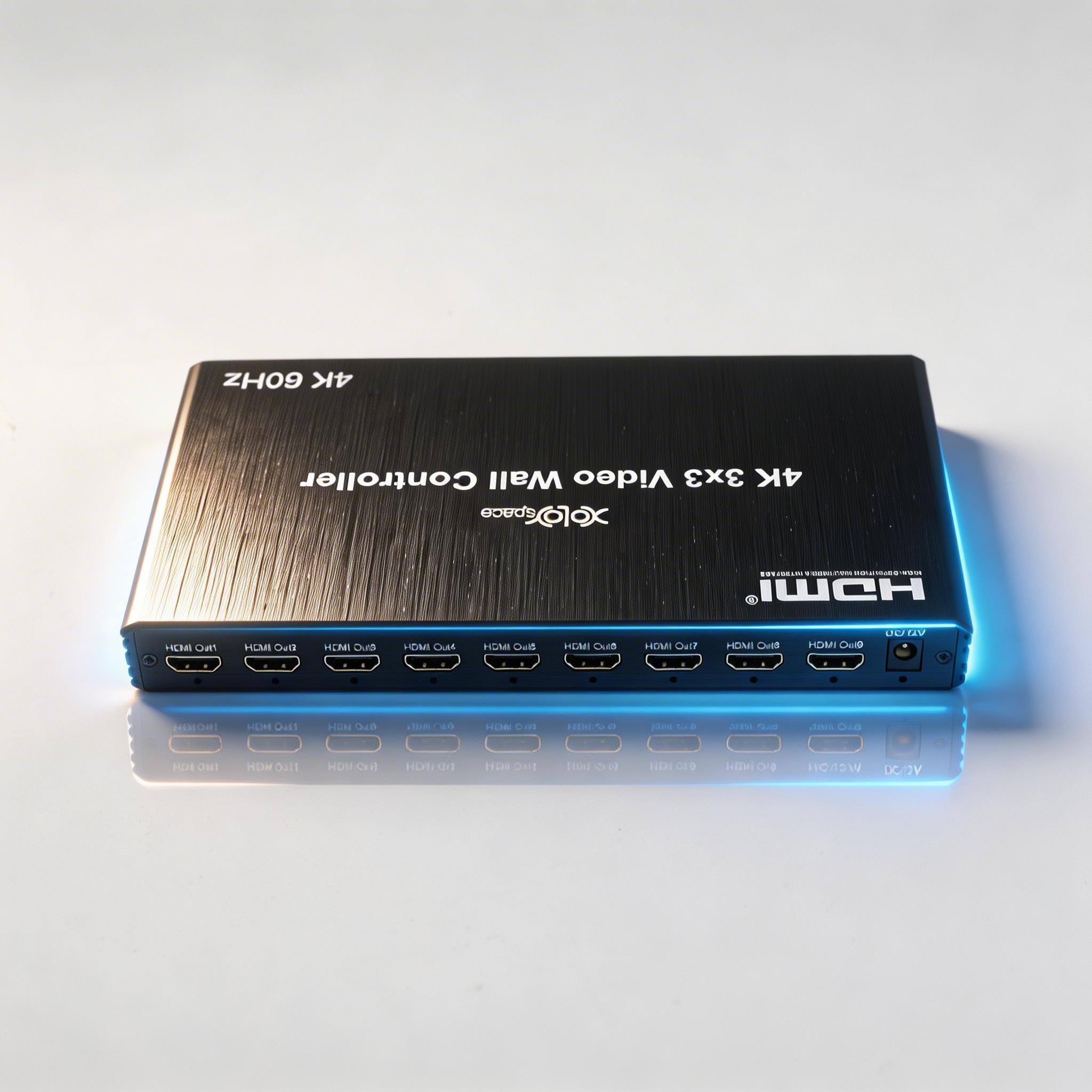

- Supports 1 way HDMI input,10-way HDMI output
- Compliant with HDMI 2.0 and HDCP 2.1
- Supports 23 splicing modes per unit:1X1,1X2,1X3,1X4,1X5,1X6,1X7,1X8,1X9,2X1,2X2,
2X3,2X4,3X1,3X2,3X3,4X1,4X2,5X1,6X1,7X1,8X1,9X1.
- Supports 30 cascading splicing modes:2X5,2X6,2X7,2X8,2X9,2X10,2X12,3X4,3X5,3X6,
3X7,3X8,3X9,4X3,4X4,4X5,4X6,5X2,5X3,5X4,5X5,6X2,6X3,6X4,7X2,7X3,8X2,8X3,9X2,9X3.
- Supports maximum resolution of 4096x2160@60Hz with backward compatibility.
- Supports 8/10/12 bit deep color
- Max bandwidth: 600MHz
- Max baud rate: 18Gbps
- Maximum output resolution per channel is 1920x1080@60Hz. When outputting more than 6 screens, the output resolution is 1280x720@60Hz.
- The output supports rotating the first row 180° (available when the splicing mode with two rows), also works for a single row.
- Supports custom point to point display—no stretching, no distortion, no compression of the input source. Clear image, such as a computer signal source.
- Dimension (L x W x H): 226x120x25(mm)
- Weight of physical: 600g
Box Content:
HDMI multiviewer model QV401-V2.0*1
12v Power adapter *1
Remote control *1
HDMI cable *3
