XOLORspace QV941 industrial-level Wall-mountable 4x1 4K HDMI quad viewer with IR remote control and seamless switching
XOLORspace QV941 industrial-level Wall-mountable 4x1 4K HDMI quad viewer with IR remote control and seamless switching
XOLORspace QV941 industrial-level Wall-mountable 4x1 4K HDMI quad viewer with IR remote control and seamless switching
XOLORspace QV941 industrial-level Wall-mountable 4x1 4K HDMI quad viewer with IR remote control and seamless switching
XOLORspace QV941 industrial-level Wall-mountable 4x1 4K HDMI quad viewer with IR remote control and seamless switching

XOLORspace QV941 industrial-level Wall-mountable 4x1 4K HDMI quad viewer with IR remote control and seamless switching

Regular price
$229.00
Sale price
$229.00

Introduction

The high performance 4×1 quad multi-viewer supports four routes HDMI high definition input contents be displayed on one HDMI screen and one VGA screen simultaneously. It supports analog audio output that can be selected different input source. Supports five multi-view display modes. Output resolution can be adjusted and supports the maximum up to 4K30Hz. The product can be controlled via the front panel button and remote control.



Features

  • HDMI 1.4b, HDCP 1.4 compliant
  • Inputs ports: 4x HDMI Type A [19-pin female]; 1x SEVICER [Micro USB, Update port]
  • Outputs ports:  1x HDMI Type A [19-pin female], 1x VGA [VGA-D], 1x Audio [3.5mm Stereo Mini-jack]
  • Input resolution can automate recognition. (480p~4K30Hz, 800x600~4K30Hz)
  • Output resolution can be selected by on-panel button and remote control.
  • HDMI supports resolution the maximum up to 4K30Hz. (3840x2160@30Hz, 1920x1080@50/60Hz, 1280x720@50/60Hz, 1920x1200@60Hz, 1024x768@60Hz)
  • VGA supports resolution the maximum up to 1920x1200@60Hz. (1920x1080@50/60Hz, 1280x720@50/60Hz,1920x1200@60Hz, 1024x768@60Hz)

Note: If output resolution selects the 4K30Hz, the VGA port will not support.

  • Color Depth: 8-bit
  • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
  • Audio supports LPCM 2CH. 44.1KHz 48KHz

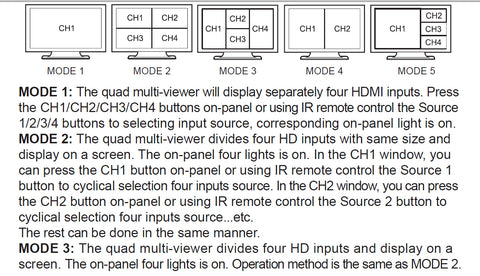

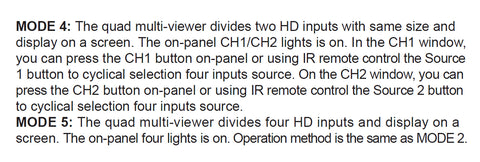

  • Supports 1/2/4 windows multi-view modes.

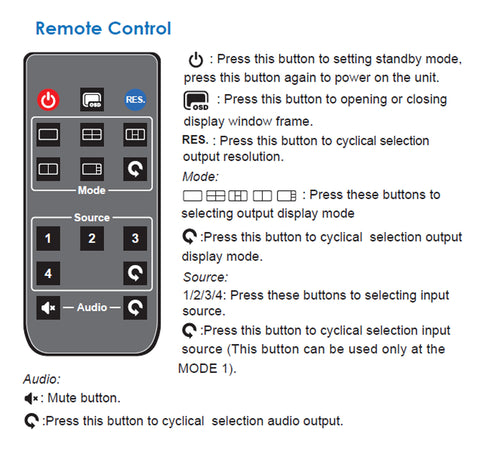

  • Control is via on-panel button and remote control.
  • Dimensions: 185mm (W)×128mm (D)×20mm (H)
  • Weight: 595g

Package Contents
1* 4K HDMI 4×1 Quad Multi-Viewer
1* 12V/1A DC Power Adapter
1* Remote Control
2* Mounting Ears
1* User Manual
