Introduction

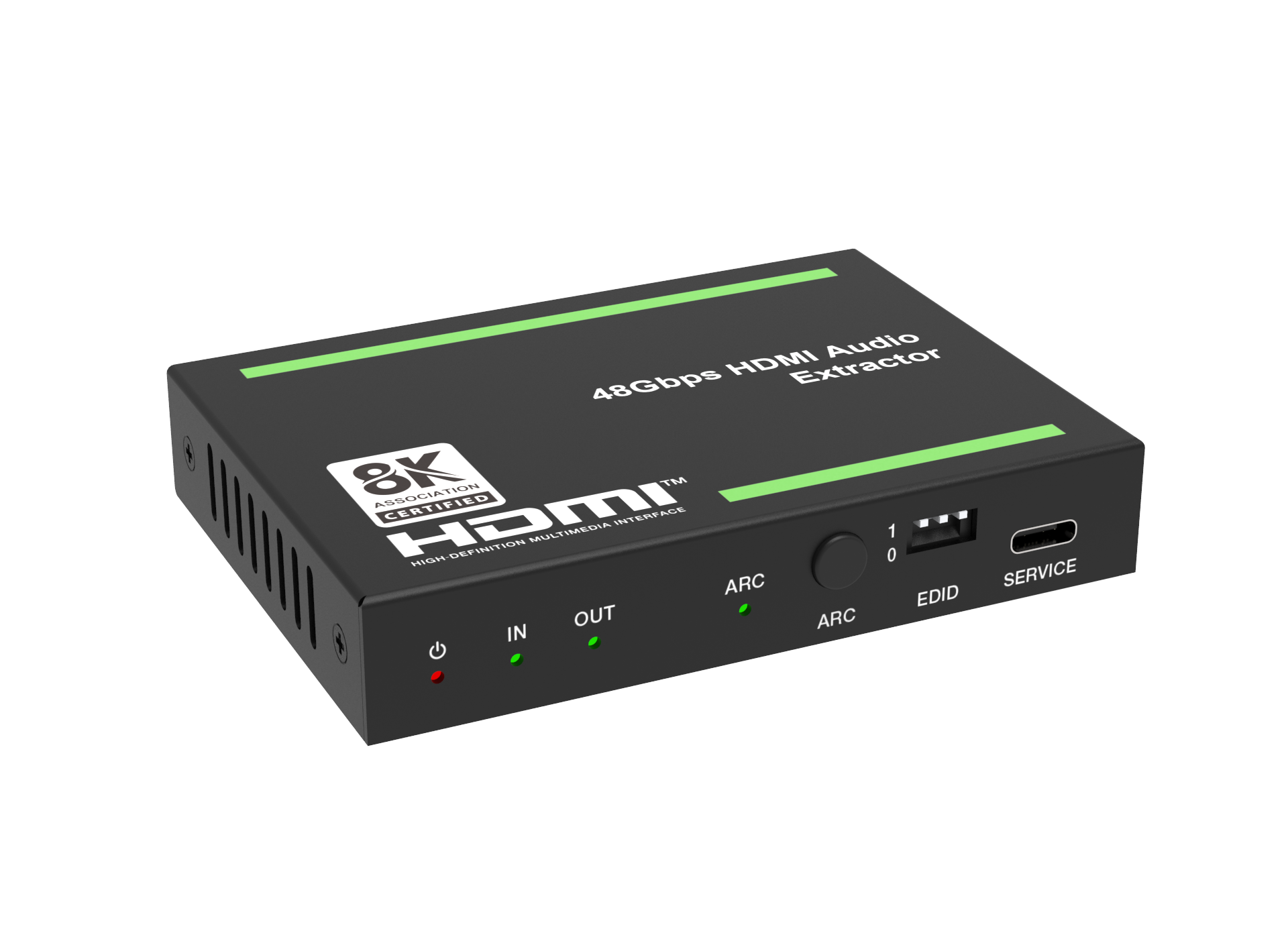

This 48Gbps HDMI 2.1 audio de-embedder extracts audio from HDMI sources or ARC TVs, delivering buffered HDMI video alongside analog stereo L/R and digital S/PDIF audio. Supporting 48Gbps FRL bandwidth, it hits 8K@60Hz max resolution and complies with HDCP 2.3. It passes all mainstream HDR formats and lossless surround audio, features EDID management, CEC control, and compact metal housing, offering a simple audio separation solution for home theater HDMI setups.
Features
· HDMI 2.1 & HDCP 2.3 compliant, supports 48Gbps FRL and 18Gbps TMDS bandwidth
· Max video: 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
· Supports VRR, ALLM, QMS, QFT, SBTM HDMI 2.1 protocols
· Pass-through HDR10, Dolby Vision, HLG and all lossless surround audio
· De-embed HDMI input or TV ARC audio to optical S/PDIF and 3.5mm L/R
· CEC control, advanced EDID management, small metal compact design
Specifications
1. HDMI: HDMI 2.1, HDCP 2.3; Bandwidth: 48Gbps FRL /18Gbps TMDS
2. Video: Up to 8K@60Hz 12bit, 8/10/12-bit color depth, full YCbCr/RGB color spaces
3. Audio: HDMI pass-through full lossless formats; Optical out PCM2.0/Dolby/DTS5.1; L/R only PCM2.0

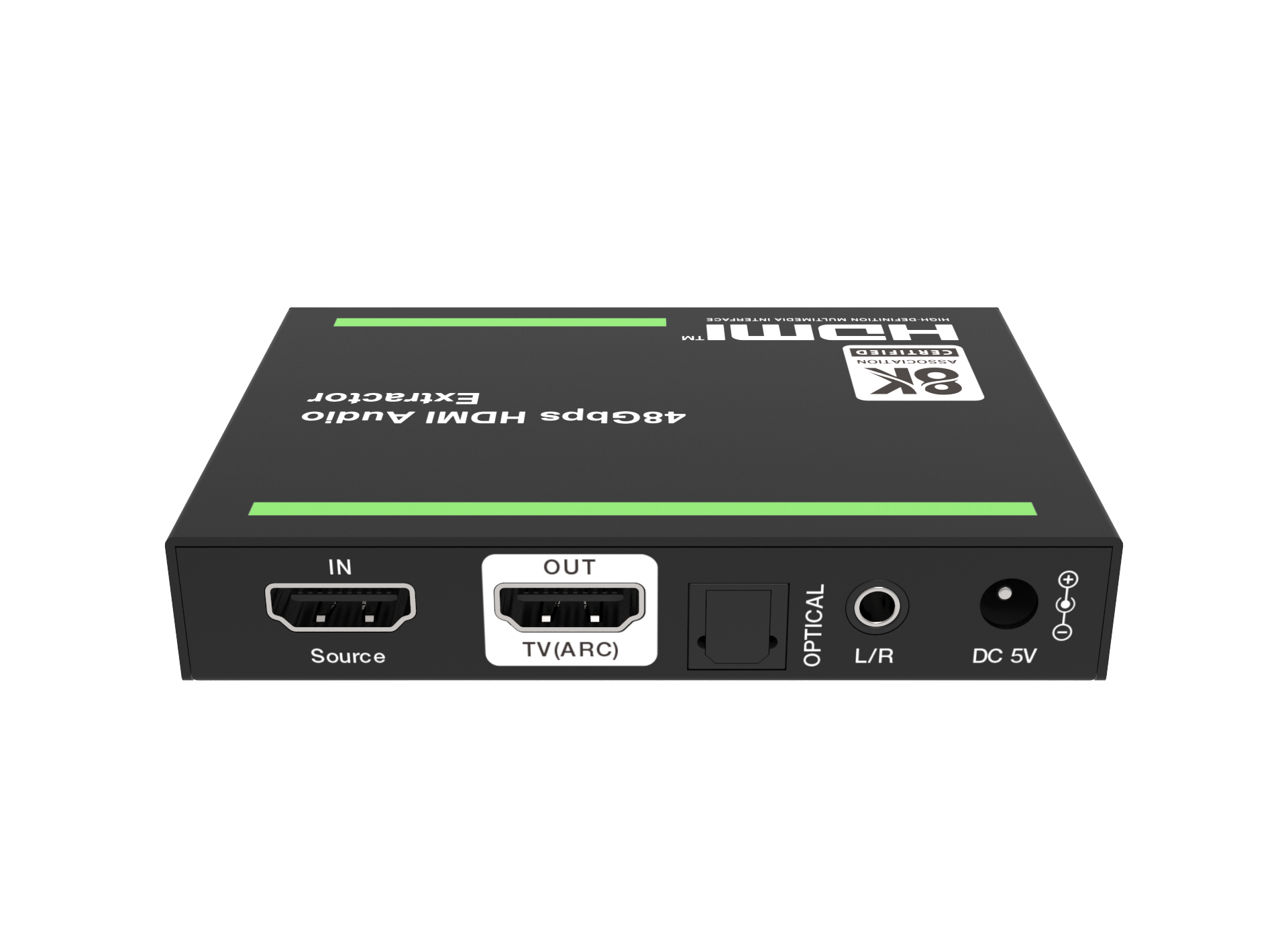

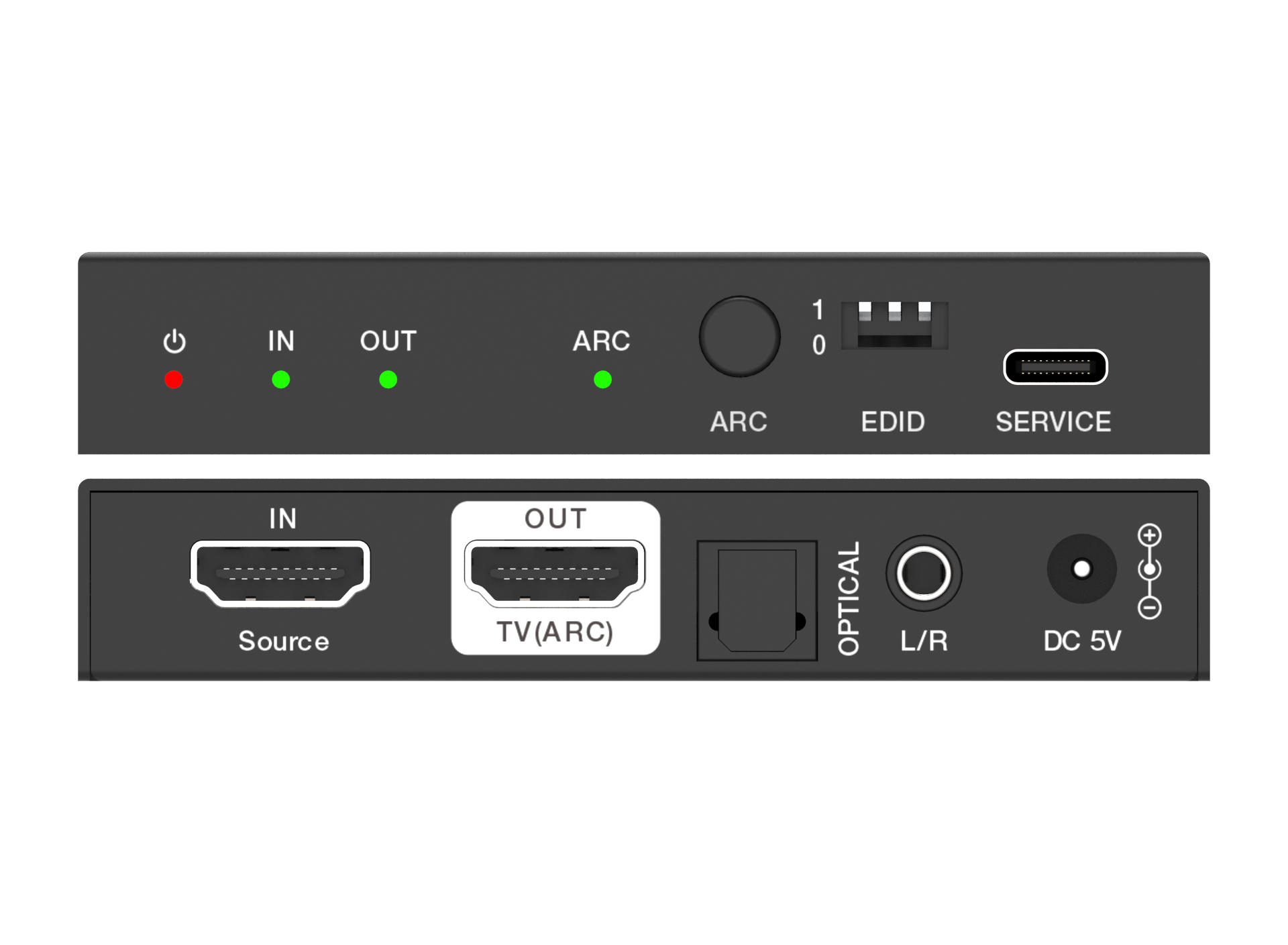

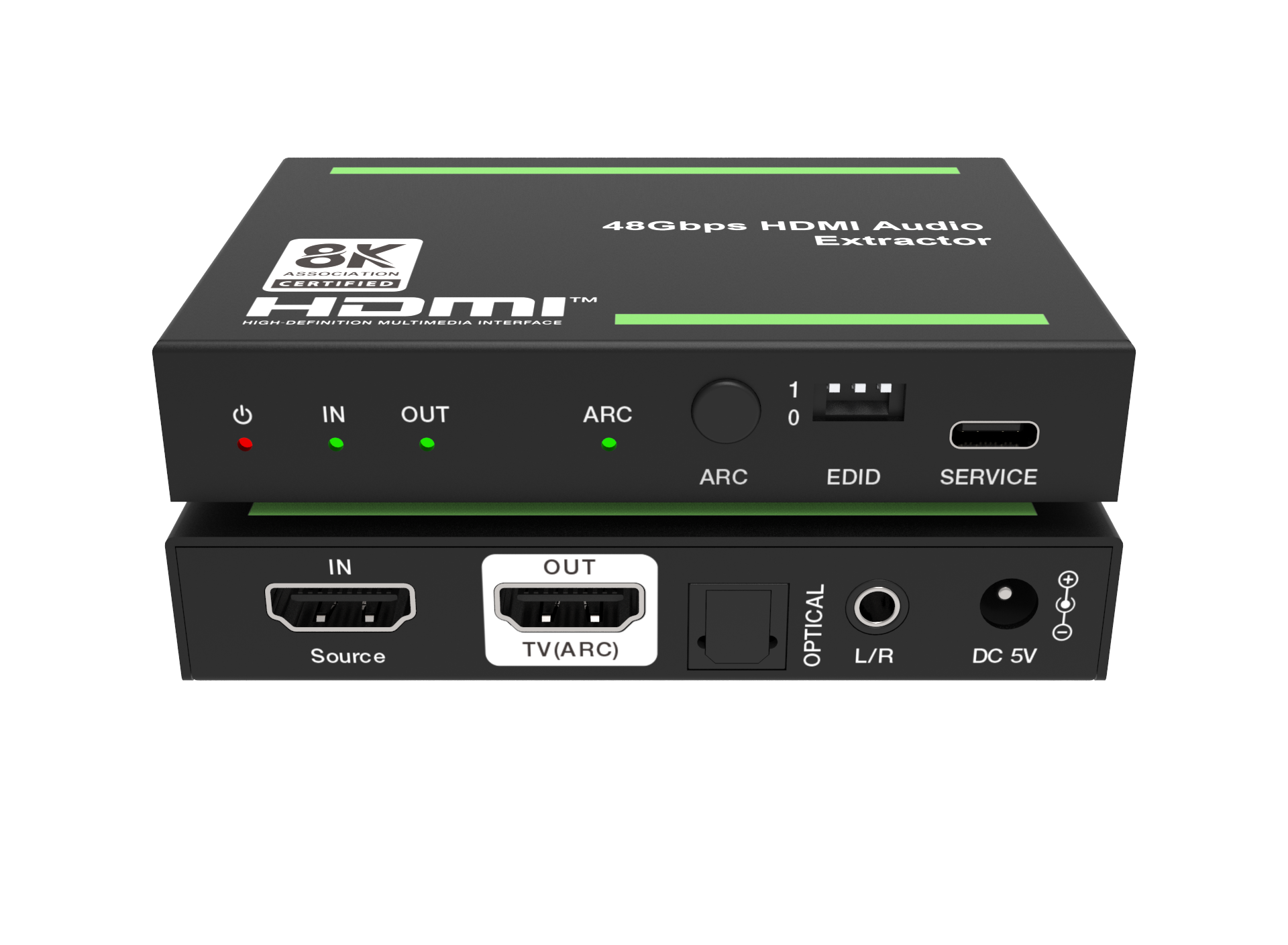

4. Ports: 1 HDMI IN, 1 HDMI OUT(ARC), 3.5mm L/R, S/PDIF Optical, USB-C Service, DC5V
5. Hardware: Metal case 95×68×18mm, 178g, Max 4W power, 0–40°C working temp, ±8kV ESD protection
