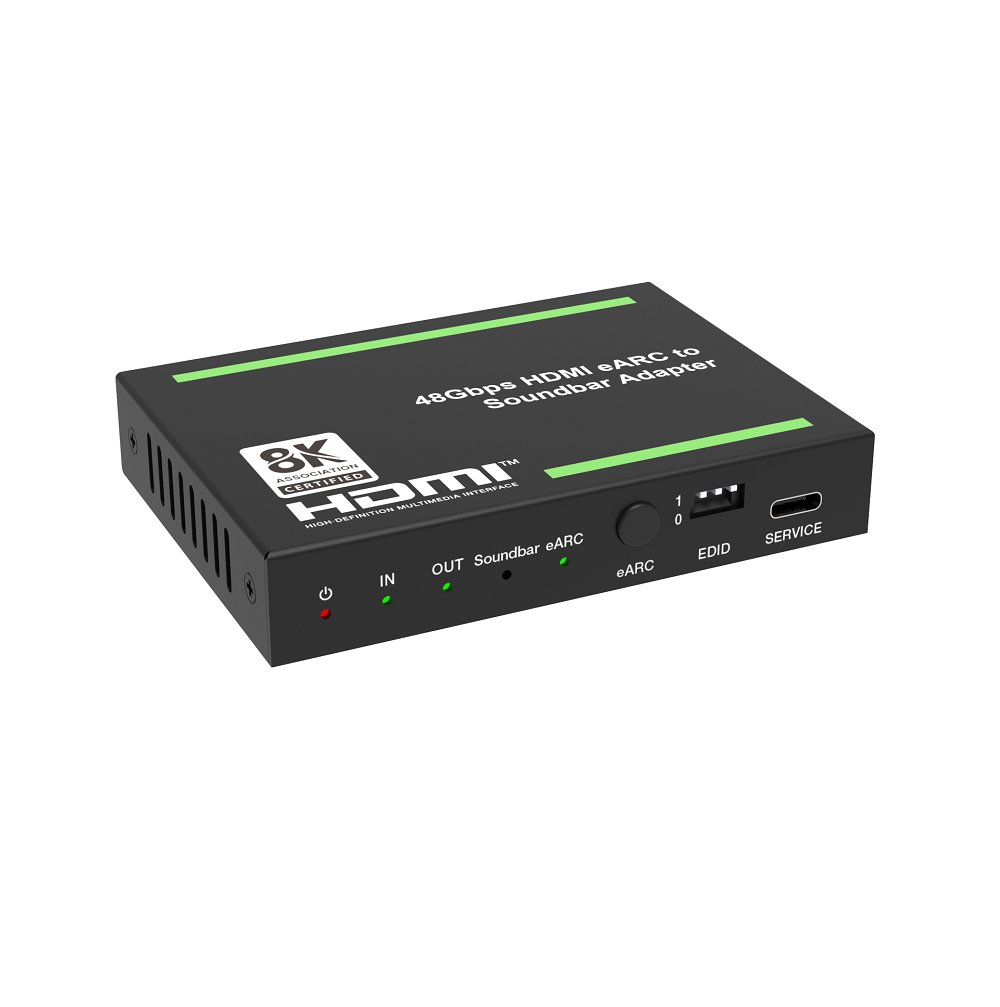

1.Introduction
This HDMI eARC Audio to Soundbar Adapter is designed for de-embedding audio signals from an HDMI source or TV with ARC/eARC to output HDMI audio to Soundbar. It supports data rates up to 48Gbps complying with HDMI 2.1 and HDCP 2.3 requirements. It is compatible with UHDTV 8K@60Hz. It includes several features for ease of integration, such as EDID management and cable equalization. It provides an easy solution for HDMI installations to send audio signals to a Soundbar. CEC control from TV to the source and Soundbar is also supported.
2.Features
☆ HDMI 2.1 and HDCP 2.3 compliant
☆ Support 48Gbps FRL and 18Gbps TMDS video bandwidth
☆ Support video resolution up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
☆ HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, SBTM are supported
☆ HDR, HDR 10, HDR 10+, Dolby Vision, HLG pass-through
☆ LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio
pass-through
☆ HDMI input audio or TV eARC audio de-embedded to any Soundbar
☆ Full audio up to Dolby Atmos/DTS:x from eARC TV to SONOS ARC &
Beam or any eARC Soundbar
☆ Support CEC control from TV to the source and Soundbar
☆ Support CEC volume control from TV to any sound system
☆ Advanced EDID management
|
|
Technical |
||||||
|
|
HDMI Compliance |
HDMI 2.1 |
|||||
|
|
HDCP Compliance |
HDCP 2.3 |
|||||
|
|
Video Bandwidth |
48Gbps FRL and 18Gbps TMDS |
|||||
|
|
Video Resolution |
Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit |
|||||
|
|
Audio Latency |
No Latency |
|||||
|
|
Video Latency |
No Latency |
|||||
|
|
Color Depth |
8/10/12bit |
|||||
|
|
Color Space |
RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 |
|||||
|
|
Audio Formats |
HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X eARC AUDIO OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X |
|||||
|
|
HDR |
HDR, HDR10, HDR10+, Dolby Vision, HLG |
|||||
|
|
ESD Protection |
IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
|||||
|

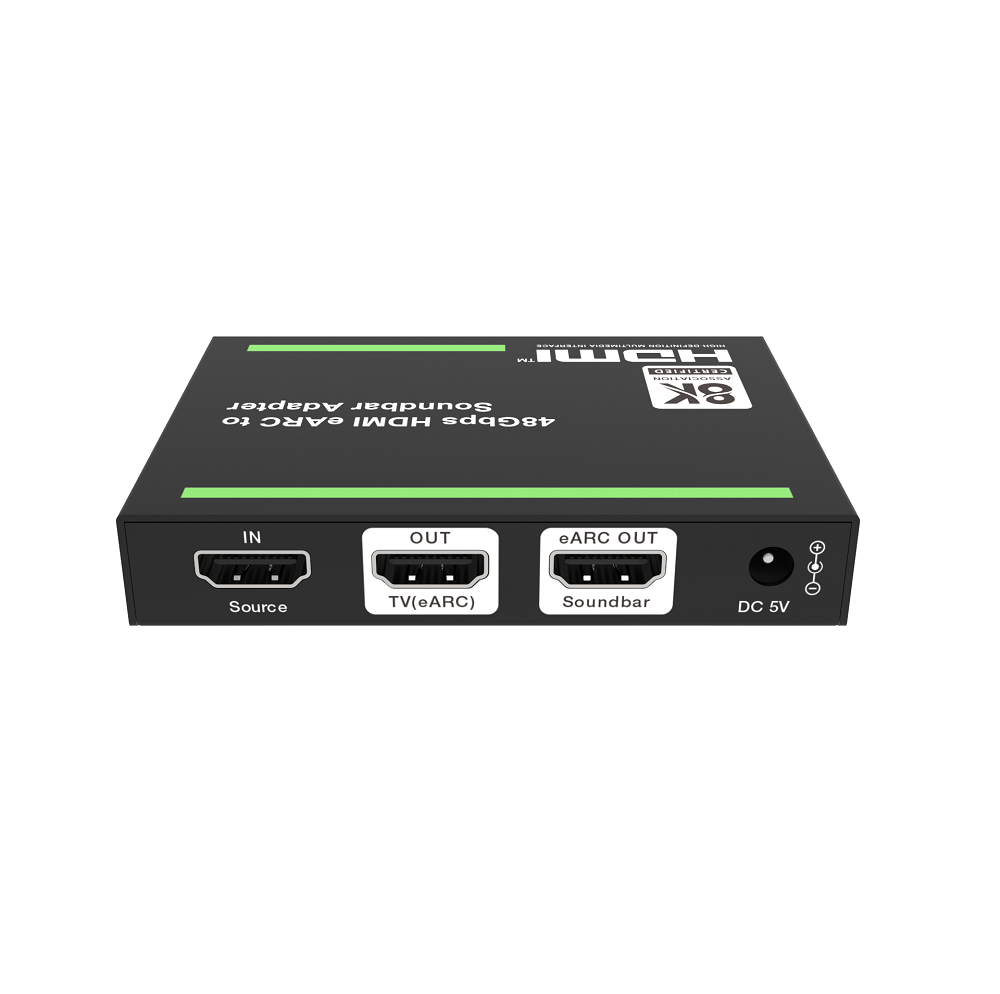

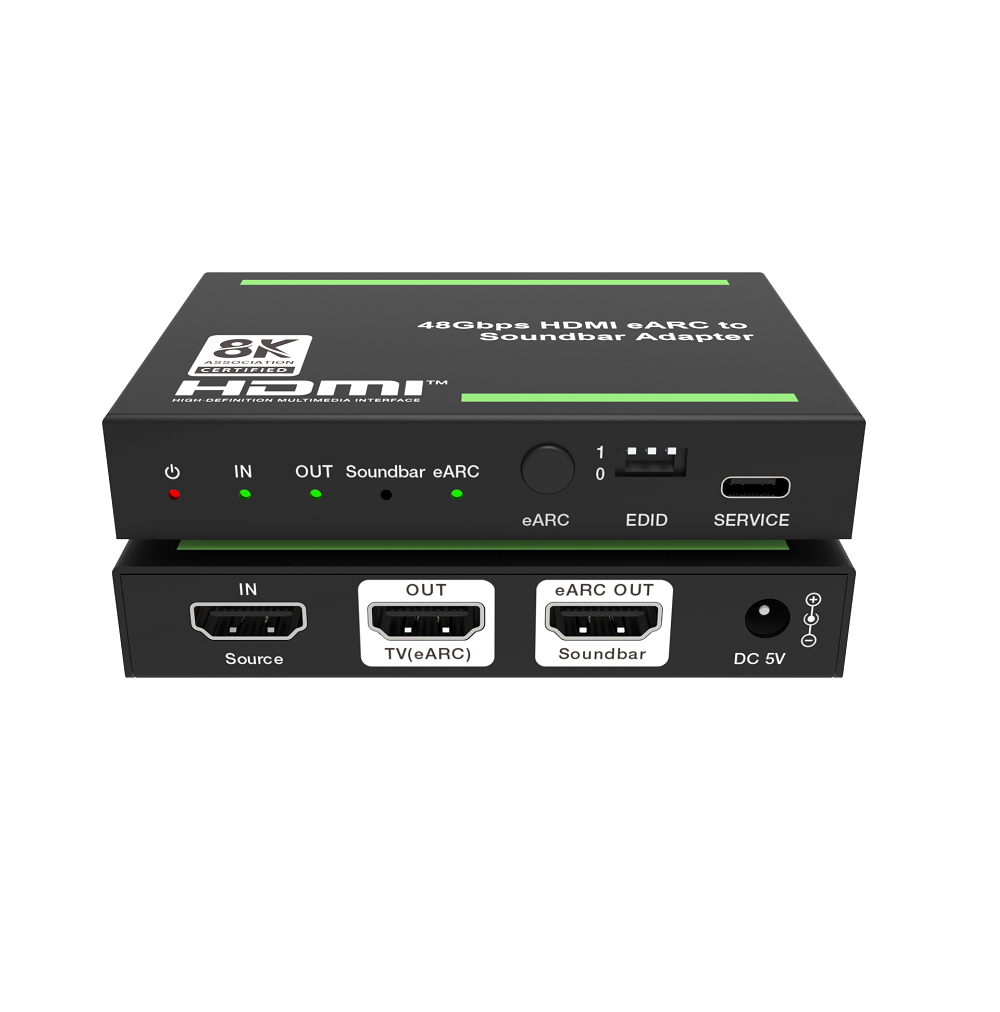

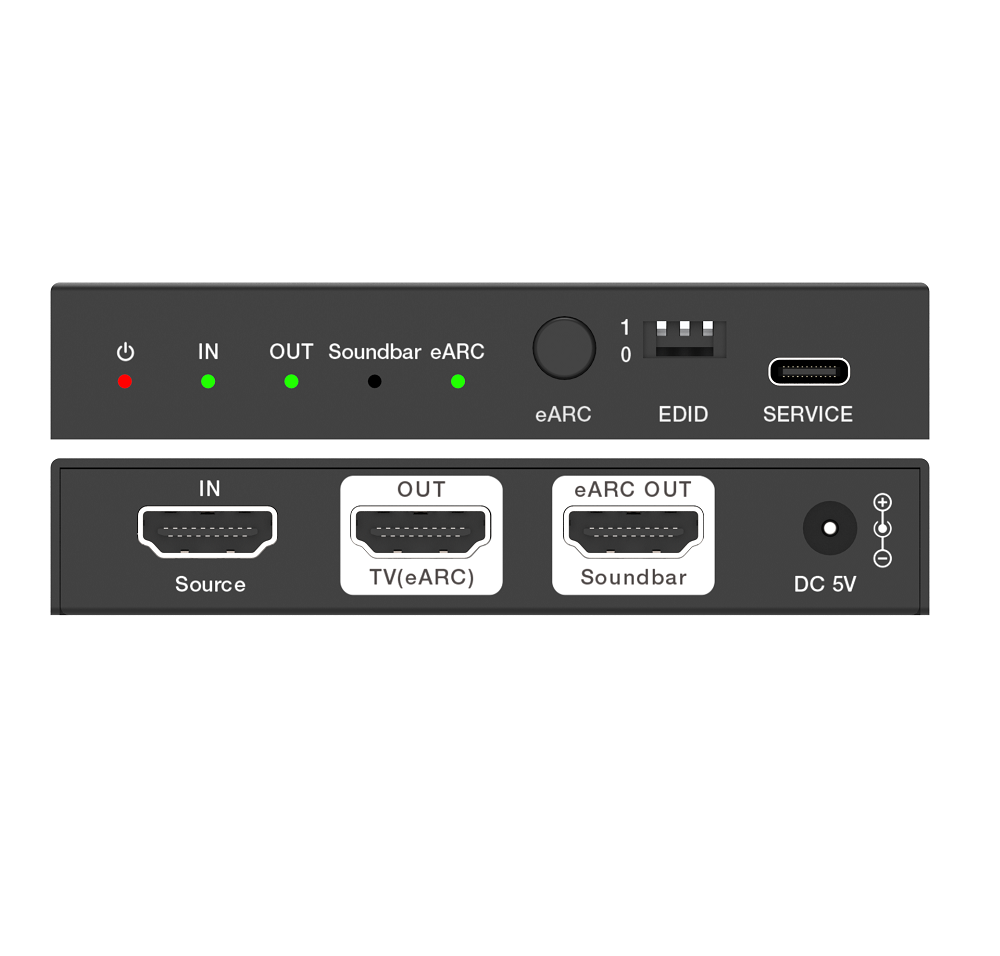

Connection |
|
||||||
|
Input |
1 × Source IN [HDMI Type A, 19-pin female] |
|
|||||
|
Output |
1 × TV(eARC) OUT [HDMI Type A, 19-pin female] 1 × Soundbar eARC OUT [HDMI Type A, 19-pin female] |
|
|||||
|
Control |
1 × SERVICE [USB Type C, Update port] |
|
|||||
|
Mechanical |
|
||||||
|
Housing |
Metal Enclosure |
|
|||||
|
Color |
Black |
|
|||||
|
Dimensions |
95mm [W] × 68mm [D] × 18mm [H] |
|
|||||
|
Weight |
178g |
|
|||||
|
Power Supply |
Input: AC 100-240V 50/60Hz, Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) |
|
|||||
|
Power Consumption |
4.13W (Max) |
|
|||||
|
Operation Temperature |
0°C ~ 40°C / 32°F ~ 104°F |
|
|||||
|
Storage Temperature |
-20°C ~ 60°C / -4°F ~ 140°F |
|
|||||
|
Relative Humidity |
20~90% RH (non-condensing) |
|
|||||
|
Recommended HDMI Cable |
|
||||||
|
Video Resolution |
8K60 |
4K60 |
4K30 |
1080P |
|
||
|
HDMI Cable Length (HDMI IN / OUT) |
2m/6.6ft ~ 3m/10ft (Ultra HDMI 2.1) |
5m/16ft |
10m/33ft |
15m/49ft |
|
||
|
The use of “Premium High Speed HDMI” cable is highly recommended. |
|
||||||
