Introduction :

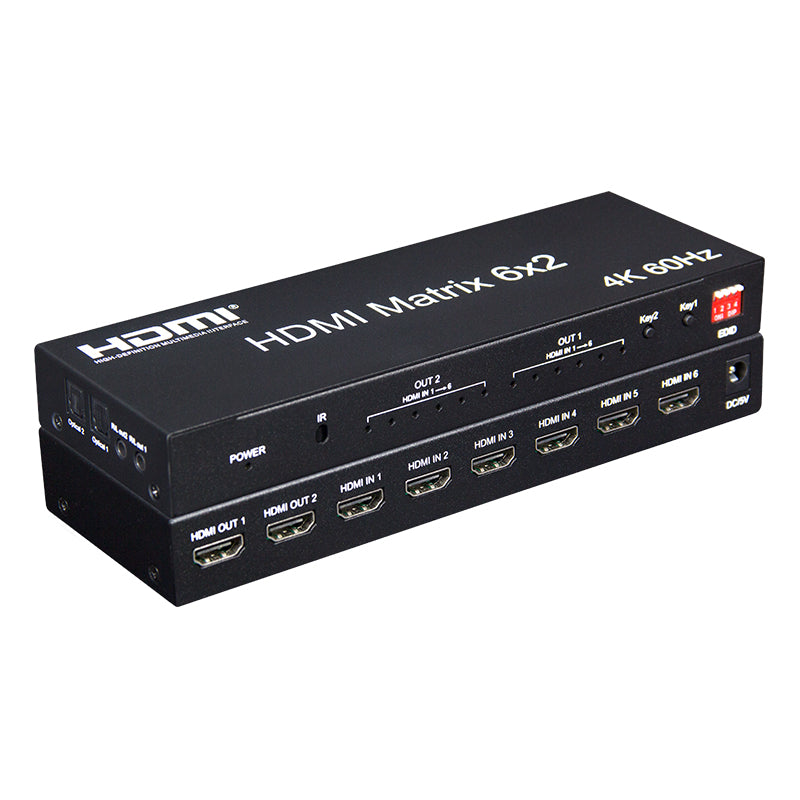

The HDMI 4K 60Hz matrix 6x2 can connect 6 HD signal sources to 2 HD display terminals with optical fiber or stereo headphone output. The matrix allows six HDMI devices to be switched or split easily to two HDMI compatible monitors or projectors. And any output ports can realize independent audio output by optical fiber or stereo head phone.
Features :
- HDMI 2.0b, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant;
- Supports 6 HDMI inputs and 2 HDMI outputs and with audio extractor (SPDIF and 3.5mm audio out);
- Supports real matrix: switch 6 HDMI inputs and split to any of the 2 HDMI displays;
- Video resolution up to Up to 4K2K@50/60Hz(YCbCr 4:4:4),4K2K@30Hz. All HDMI 3D TV format, etc., Support 3D video format;
- Color space: RGB, YCbCr4:4:4, YCbCr4:2:2, YCbCr 4:2:0;
- Color Depth: 8-bit, 10-bit, 12-bit [1080P, 4K30Hz, 4K60Hz (YCbCr 4:2:0)]; 8-bit [4K60Hz (YCbCr4:4:4)];
- OUT A and OUT B support 4K to 1080P downscale function;
- Support 2 HDMI audio outputs, 3.5mm earphone jack and optical output at same time;
- Support LPCM/Dolby/DTS 5.1 channel;
- HDMI channel supports audio format: LPCM/DTS/Dolby-AC3
- Supports 18Gbps uncompressed bandwidth on all HDMI
- Max bandwidth: 600MHz
- Input / output cable distance: 4K/30Hz ≤8M AWG26 HDMI standard cable, 4K/60Hz ≤3M HDMI 2.0 standard cable AWG24 and 1080p ≤ 10M AWG26 HDMI standard cable
- Dimension (L x W x H): 200x70x25 (mm)
- Weight: 305g
Package contents:
1. 4K 60Hz HDMI Matrix 6X2
2. IR Remote Control (no battery)
3. 5V power adapter
4. User Manual
