Introduction:

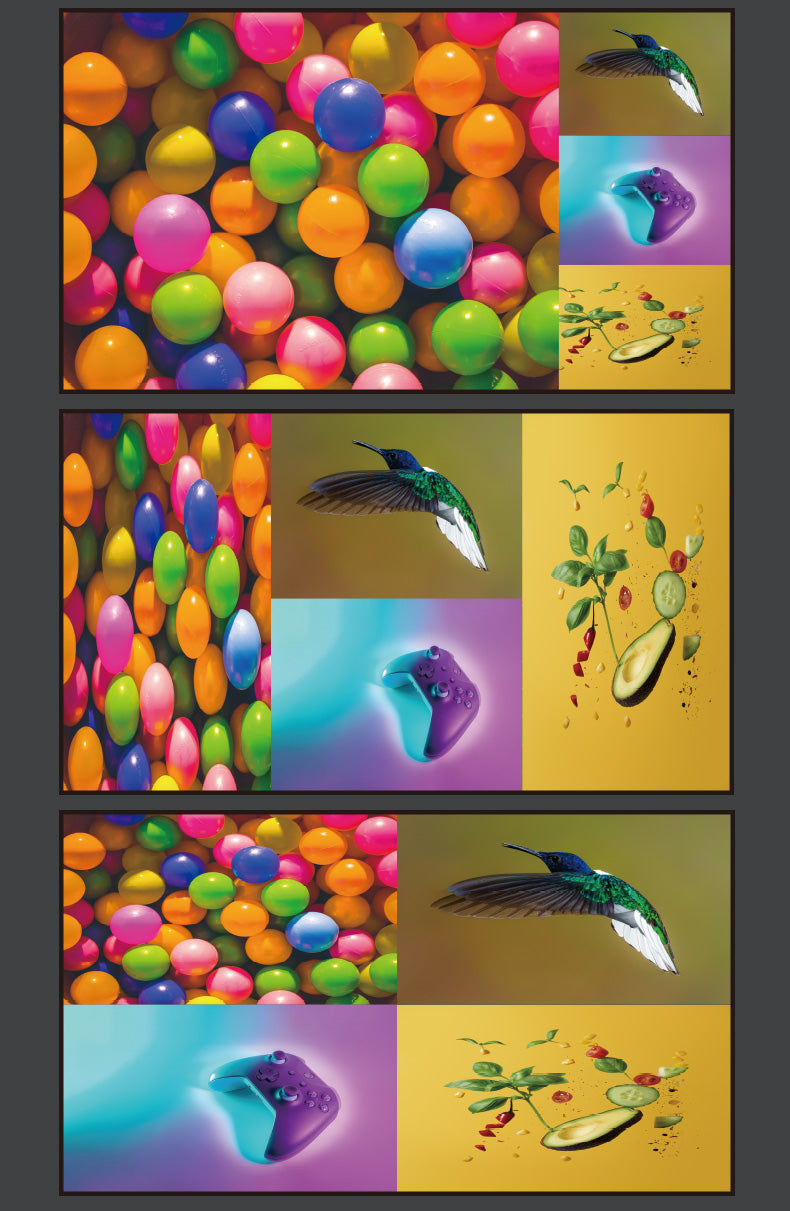

4K HDMI 4x1 Quad Multi-viewer is a high performance with four HD screen segmentation and seamless switching output switch. It can display 4HD digital video signal on the same screen, and has a variety of video segmentation, seamless switching 4 HD input signal synchronously. The control methods of the switch is flexible, it can be switched via button and IR control. It’s a very practical and stable switch and easy to install, can be used in the major projects, meeting halls and other places.
Features:
* Support 4HDMI input, 1 HDMI output；
* Support 4 channels HDMI signal screen segmentation；
* Support 4 channels HDMI signal seamless switching；
* Support highest resolution up to 4K/30Hz；
* Support IR control；
* Input support resolution: 4K,1080P,720P,1080i,1024X768,1360X768 and so on；
* Support audio output format: LPCM2.0；
Input cable distance : 4K/30Hz ≤10M AWG26 HDMI standard cable
Output cable distance: 4K/30Hz ≤10M AWG26 HDMI standard cable
Max bandwidth :340MHz
Max baud rate: 3.4x3Gbps
Maximum working current: 0.6 A
Power adapter format: Input AC (50 hz, 60 hz) 100V to 240V; Output: DC 5V/1A
Operating Temperature range: (10 ~ + 45 ℃)
Dimension: 121x102x19(mm)
Weight: 220g
